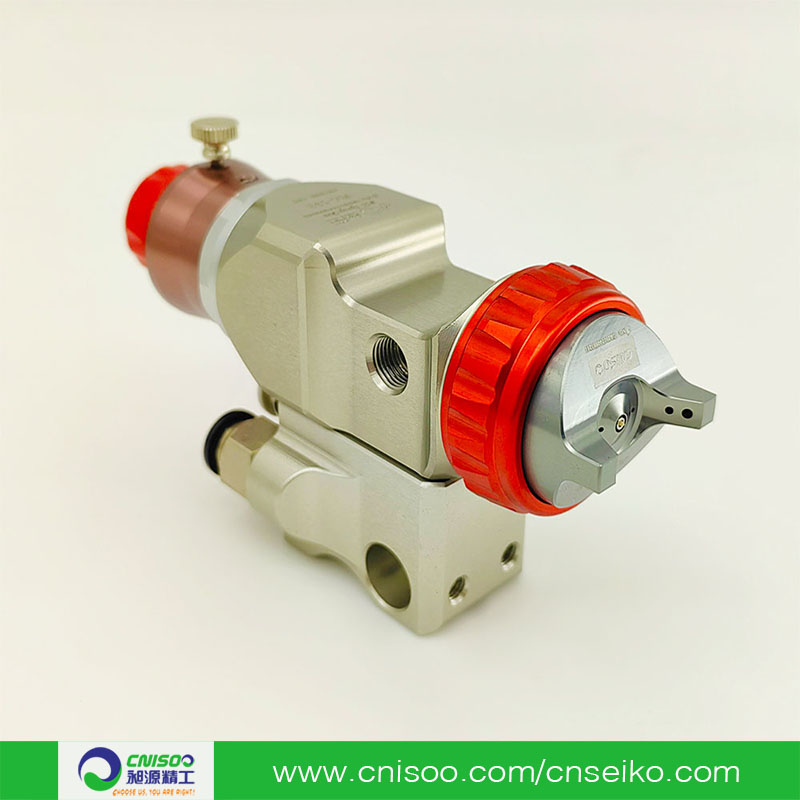

Mechanical Automatic Spray Gun |

这里可以自定义设置

Product features introduction

● The needle nozzle adopts the principle of Yin and Yang of Taiji, bidding farewell to the era of needle nozzle wear and leakage, and saying no to violence. Test data show that in emery, stone Under the liquid wash of Yingsha, the minimum service life has exceeded 9.6 million times under the impact of 0.6Mpa air pressure.

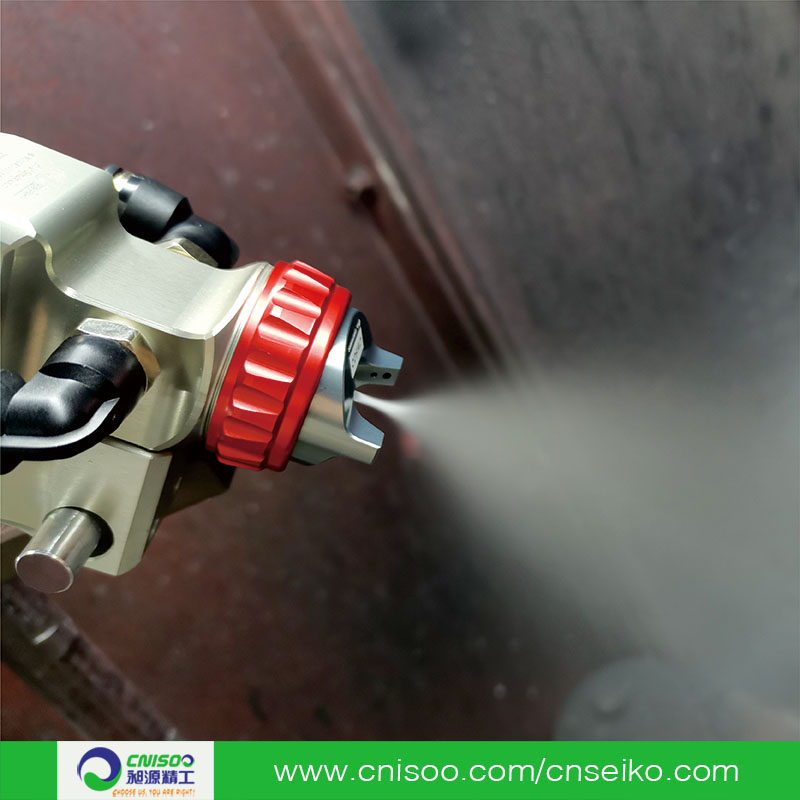

● The atomizing cap uses RP technology of low pressure and high atomization to make atomization soft and beautiful. RP Low flow pressure atomization mode: RP(Reduced = reduced Lower; The paint saving and efficient spray gun series is the most advanced atomization technology, which combines the advantages of traditional spray gun and HVLP spray gun, and the air Pressure of the spray cap is about 1.2-1.3 bar; The paint transfer efficiency is more than 65%, but the air consumption is lower than the traditional spray gun (295 liters per minute, intake pressure 2.5 bar), and the operation is very close to the traditional spray.

● The low pressure gun emits a slower flow of air than the general purpose gun. "Slow air flow speed" means that the force is weak relative to the direction of air flow. In other words, less bounce. By When the spray air pressure is low, it is not afraid of strong bouncing back to the air, and the paint particles are easy to adhere to the sprayed material.

● Although water-based coatings are increasingly popular, organic solvent coatings are still used. From the perspective of improving the spraying operation, the spray spray will pollute the spray room and the foreign body of the spraying operator. Low pressure spray gun paint spatter less, extend the spray room maintenance period, say to spray operators pollution control in a minimum. Thus, the purpose of improving the working environment is achieved.

● Save 45% of paint waste.

● Extreme fine atomization 5 microns

● Spray pressure 1.8Bar save 15% paint

Product parameter form

All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.

Form 1

Model	FM191
Nozzle Diameter (mm)	0.4/0.7/0.9/1.1/1.4/1.7
Air Consumption (l/min）	200-550
Output (ml/min)	0～320
Pattern Width (mm)	280@H=300mm
Air Cap Model	Five-axis machining forming a spray cap
Supply System	16A-20A Type of pressure stable and paint filter
Mounting hole diameter (mm)	￠12mm

◎It will vary with the paint volume,spray width,paint viscosity and pressure

Form 2

Max paint pressure	0.15mpa
Atomization air pressure	0.1-0.4mpa
Air inlet pressure	Max0.6mpa
Pressure of switch spray gun	0.35-0.5mpa
Air consumption	450l/min
Paint output	10～380ml/min
Spray width	200mm-280mm

这里可以自定义设置

Product application introduction

● A low pressure high atomization external control automatic spray gun with food grade stainless steel material is installed in pack type, and all pipes are centrally processed in post type, making the field pipes more neat and beautiful.

● Non-stick pan, ceramic glaze, wear-resistant coating (brake disc, piston guide sleeve, etc.), Teflon paint, thermos cup, fluorocarbon paint, etc

● Aurora spray, insulation paint spray, leather feel paint spray, adhesive coating for adhesive products, decorative surface spray decorative paint.

● Water-based coating construction, such as household products, laptop spraying, communication products spraying, beauty products (spraying for the cosmetics industry)

● The FM-191 low pressure air atomizer is a cost-effective spray gun with the highest level of control and maintainability.

● The FM-191 is designed for most general industrial coatings and finishing operations and is suitable for use in water-based or solvent-based coatings.

● FM-191 is designed for specialized water-based ceramic and enamel coating applications in the toilet ware and glass markets.

● Effectively customize the automatic spray gun to adapt to industry 4.0, through special flow design and unique atomization design, can effectively save paint 10% ~ 35% efficient spray gun in low-pressure environment, specially designed piston structure (has been patented), can extend the service life of the spray gun 3 times.

● Flexible installation mode, suitable for robot installation, robot arm installation, conveyor arm installation, assembly line installation, with CNISOO painting tools.

PRODUCT DETAILS

Precision to 0.01mm oil control valve, can get rid of the traditional adjustment of the amount of oil is too large to small trouble.

With ergonomic design of the hand grip groove, you can easily grasp the weight of the hand in the adjustment. Truly realize the integration of man and gun, so that the adjustment is more humane.

The vertical digital turntable can avoid fatigue without bending over to observe the scale value. Improved locking method, so that the adjusted value never changes.

Gun size and connector size
