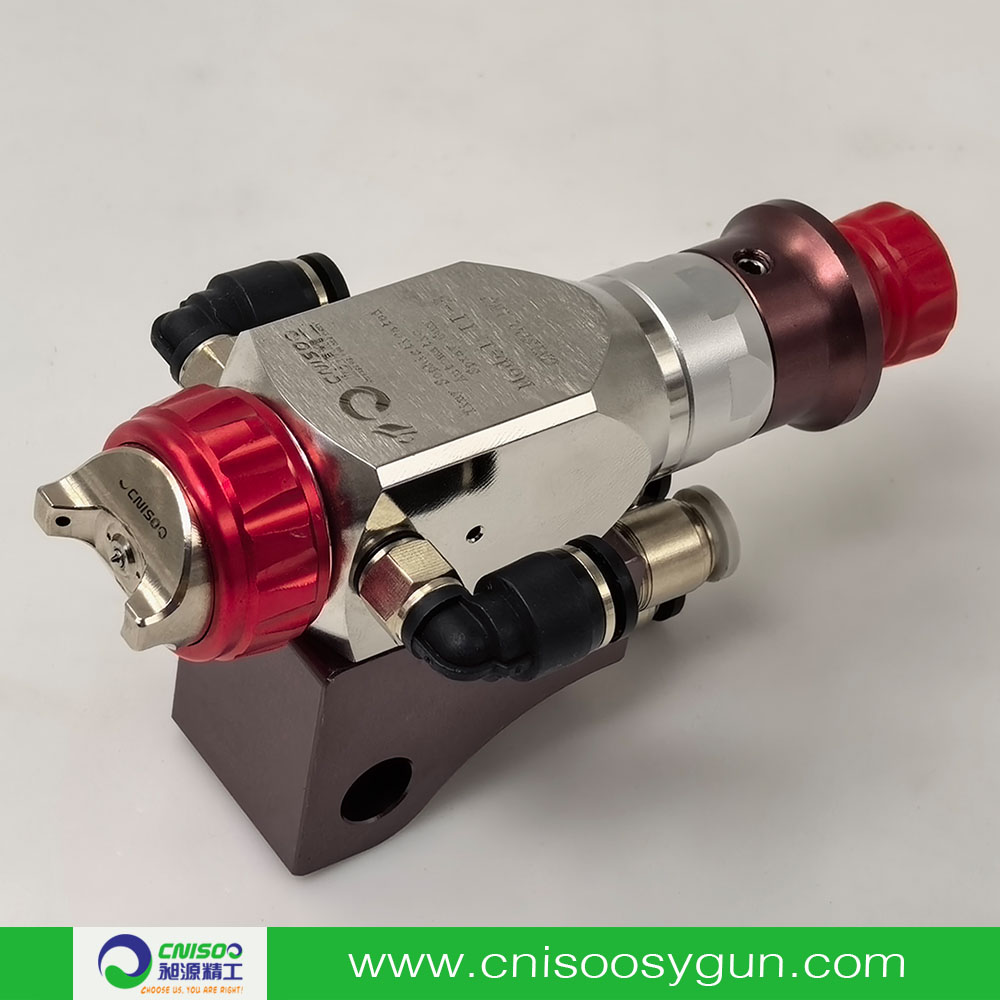

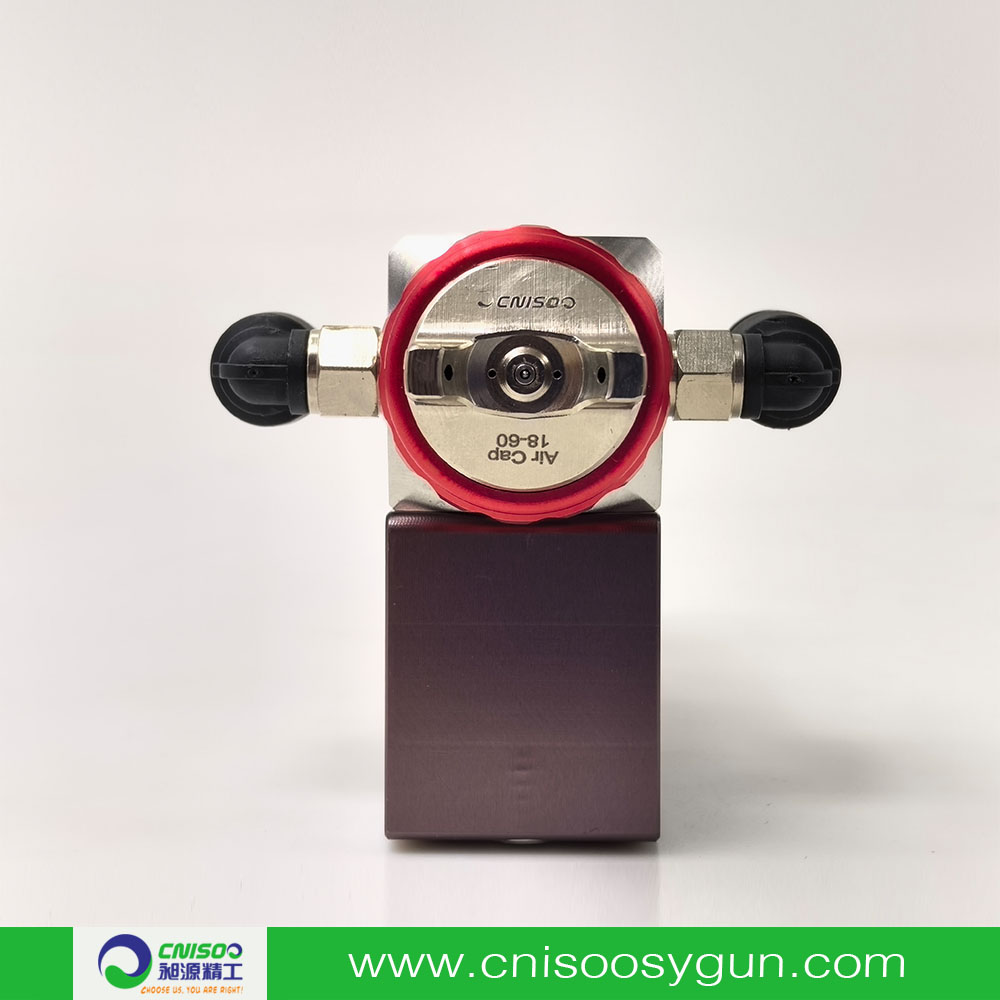

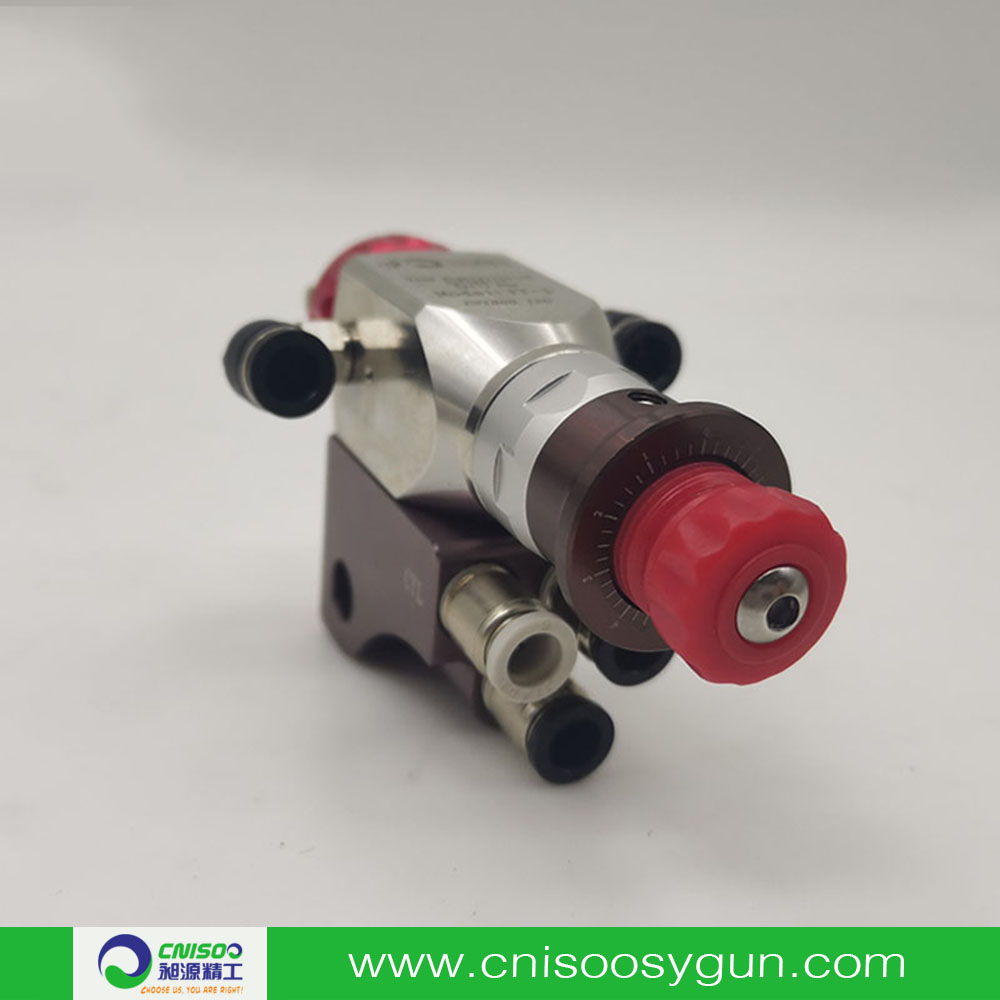

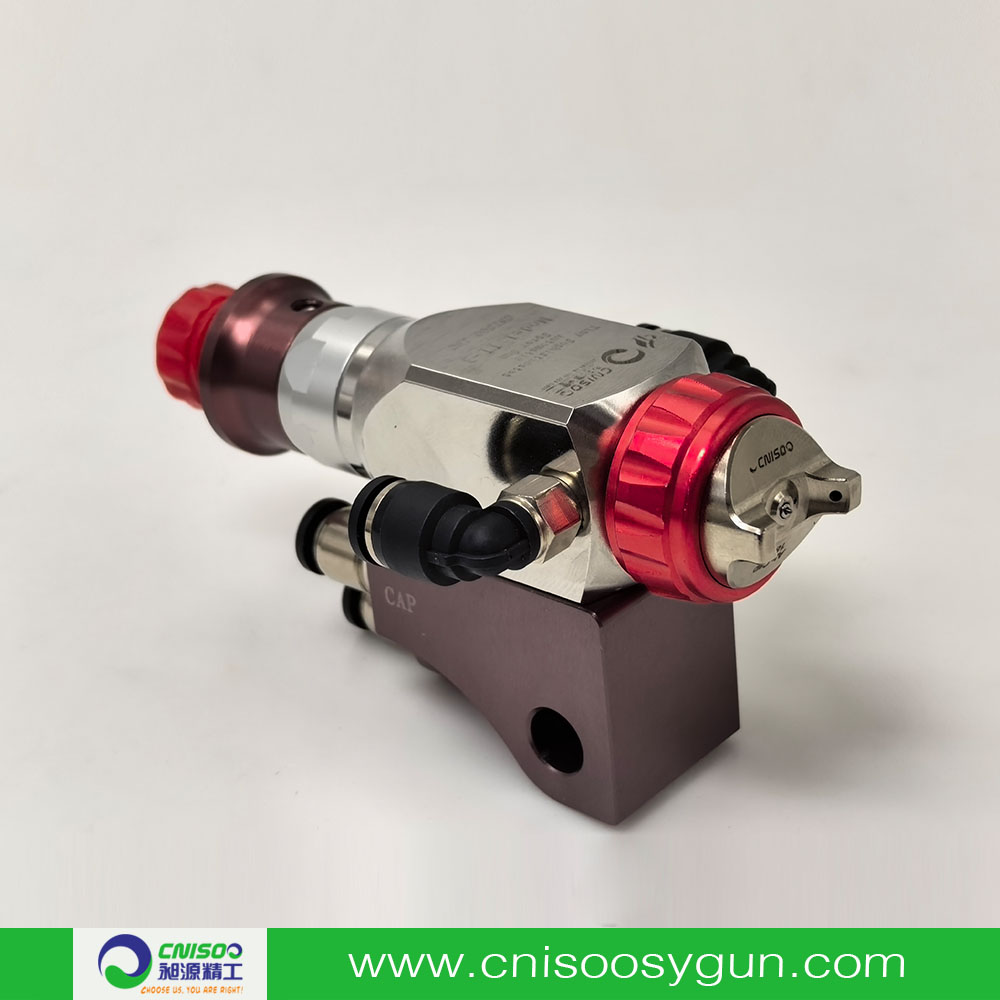

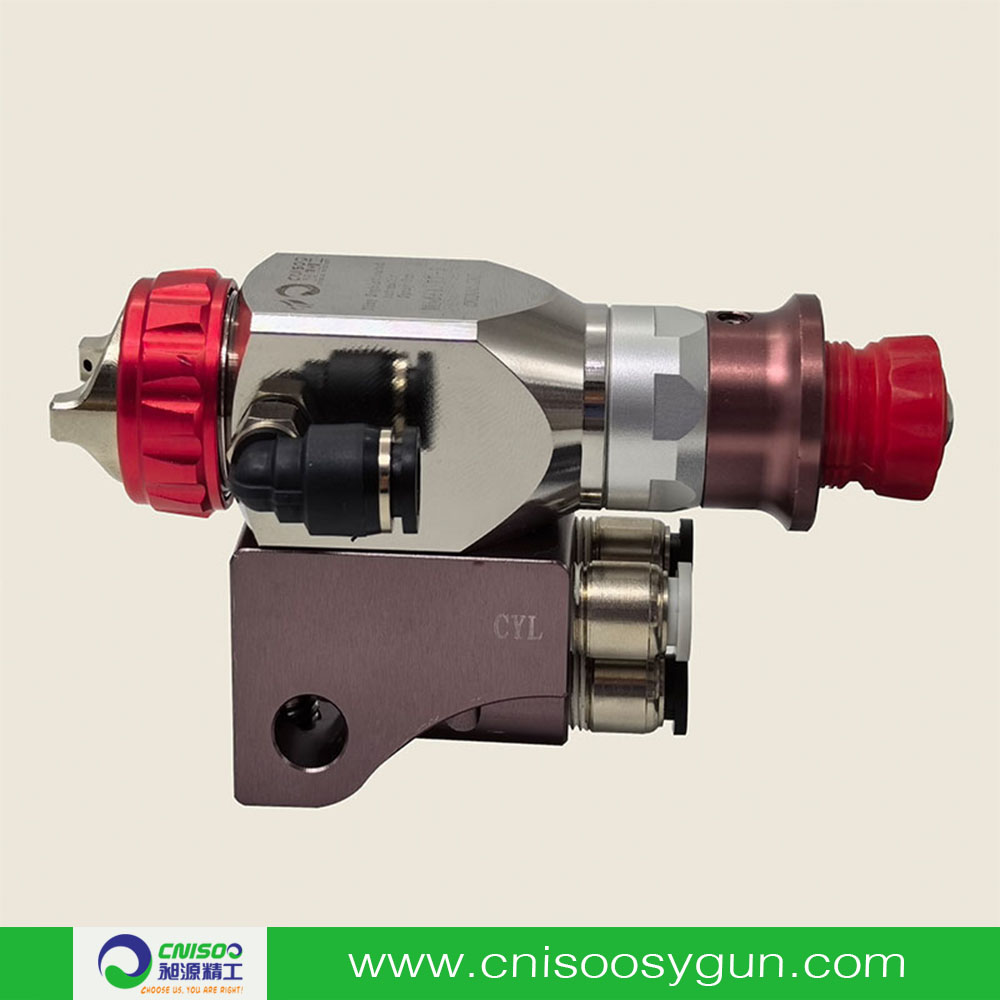

Automatic Micro Spray Gun

该产品后台详情无内容

Product application introduction

Auto accessories: instrument panel,control panel,cup holder,tape holder,the concept of frame,operating handle,locks, etc

Flectronic nroducts: nhone naaers VCRS steren remoter control mouse watch kevboard camera hair drver efc

Bedroom suppliers: sofa.coffee table.cabinets. chandeliers. ashtravs. vases. ornaments. etc.With as container:

Daily fine: decorative pieces of luggage,cutlery handles,boxes of glasses,pen,insert pen,calendar frame,art frame, racket. hair accessories,makeup pen,dressing etc: ln door building materials:doors,windows,flooring,wall panels, etc.

Product features introduction

The unique two-way gas design is suitable for small parts spraying. The gun body adjusts the valve from the bandwidth which can reduce the manual loss caused by the adiustment and reduce the adiustment time.

Ultra-low atomization air pressure,ultra-fine atomized particles small size neat piping.is the preferred spray gun for water transfer.

Due to the excellent atomization performance,it is more suitable for spraying on shoe molds.The lightweight desiqn is more suitablefor robotinstallation.

Product parameter form

All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.

Form 1：

Model	TT3-05P	TT3-08P	TT3-10P	TT3-13P
Nozzle Diameter (mm)	0.5	0.8	1.0	1.3
Air Pressure (MPa)	0.05～0.15	0.05～0.15	0.05～0.15	0.05～0.15
Air Consumption (l/min）	80	110	160	220
Output (ml/min)	125	150	180	205
Pattern Width (mm)	240	150	180	420
Air Cap Model	10P	10P	12P	14P
Type of Feed	Pressure Feed Type(0.2 5MPa～0.6MPa)
Air Hose (mm)	PTF 4624 x6mm Double Hose(Air+Paint Hose)4x6mm
Liquid Hose (mm)	PTF 4624 x6mm Double Hose(Air+Paint Hose)
Weight (g)	338
E quipment	Equip with A series stainless steel pump supplies liquid.

Product details

1、intake adjustment and spray amplitude adjustment set in the machine equipment remote control operation independent control, reduce the operation of the troubled designed to return materialnoleeasyto cleanthenozzle

2、 the intake pressure can be adiusted according to your needs(2.5-3.0bar, to reduce the

paint rebound. saving paint. slender spray spray.uniform atomization. spray large, fine

particles,the effect is particularly goodspraying efficiency High speed

3、suitable for a large number of coating use can be installed in the mechanical arm or automatic painting equipment.

4、 this automatic gun, because of easyoperation, atomization uniform, spray large, fine particles, light weight, it is widely used by industry,such as computer shell mobile phone shell cosmetic shell,furniture, hand tools,medicineTextileglassplastic, rubber, printing, die- casting,building materials,hardware and other industries can be used.

5、with a variety of nozzle caliber for choice,with a variety of spray cover, so you use more convenient

6、nozzle and thimble 304 stainless steel,suitable for spraying water-based paint.
