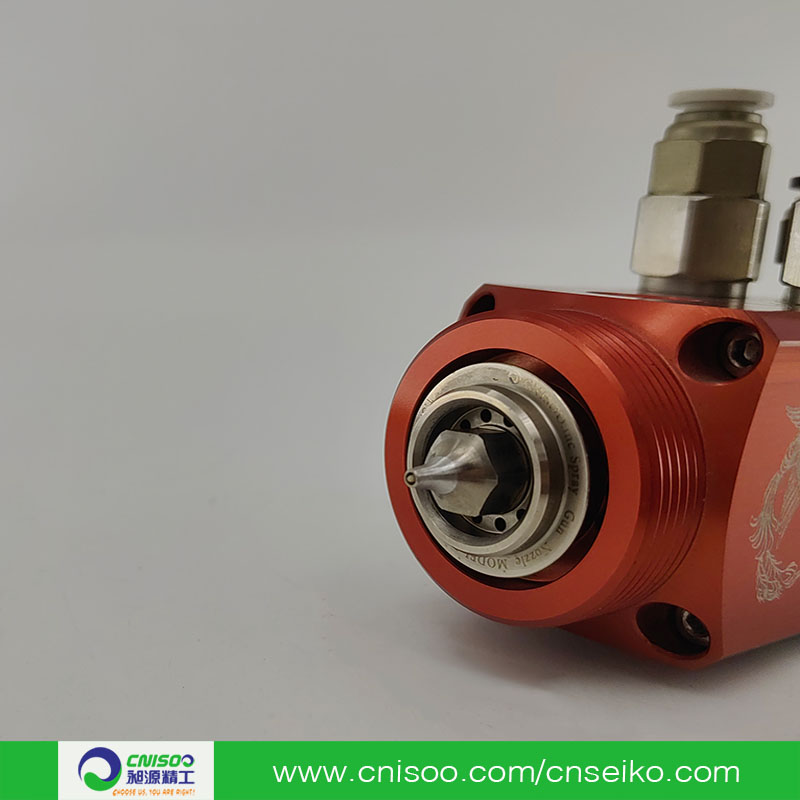

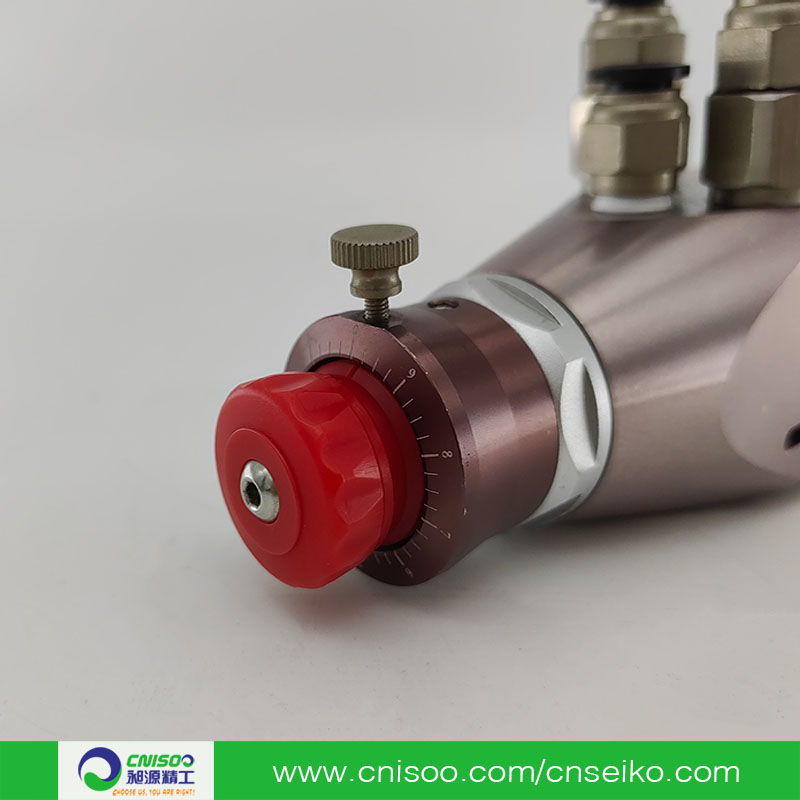

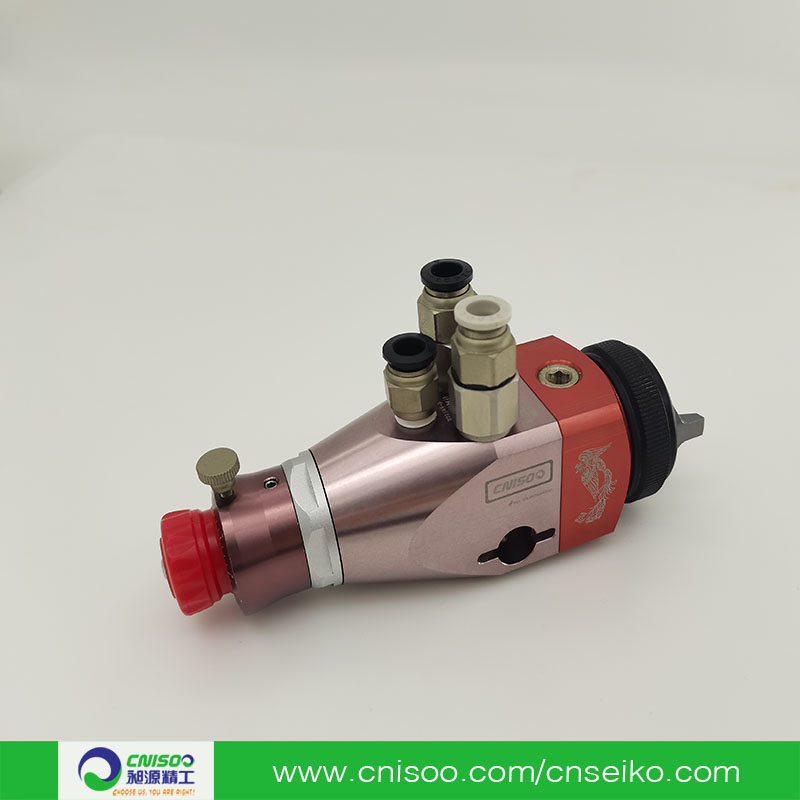

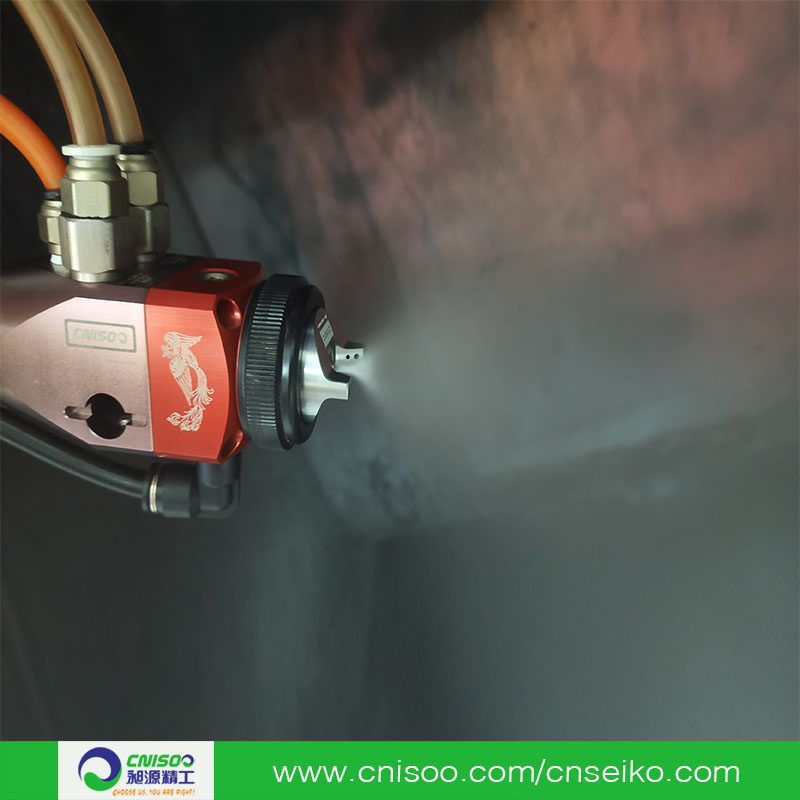

Auto spray paint gun for sale, Spray gun for Ceramic glaze

这里可以自定义设置

Product features

● Needle and nozzle by special hardening treatment, not easy to wear, specific excellent wear resistance.

● Suitable for abrasive coating of enamel glaze, ceramic glaze and so on.

● We have obtained the requirements for the tool, the special G series spray gun, the use of good wear resistance alloy material to make the needle nozzle, anti-oxidation wear-resistant treatment, the wear resistance of G series spray gun is better than the ordinary spray gun 3 times. The special nozzle and the needle Angle, the number of needle nozzle wear can be hit 9.5 million times under 0.65MPa air pressure, combined with the excellent atomization of the general spray gun, the spray gun has been favored by the public in the daily ceramic industry.

● Feldspar glaze is hard, strong luster, milky and soft, but the expansion coefficient is large, easy to produce crack glaze. Mostly used in porcelain and hard fine pottery and other products. The lime shaft has high hardness, much gloss and high transparency, but the melting range is narrow, and it is easy to cause smoke when it is fired in the original atmosphere.

Product parameter form

Model	GE-08-11	GE-08-19	GE-08-22	GE-08-29
Paint nozzle diameter	1.1	1.9	2.2	2.9
Air Consumption	530	330	360	360
Output	500	270	400	500
Pattern Width	400	340	320	330
Weight	485

这里可以自定义设置

Product Introduction

● Thespeciallytreatedspraygunneedlecanwithstandthescouring of hard materials such as glaze. Wear resistance is superior to any known material. Modified composites are more suitable for scouringinfluids.

● Ceramic glaze refers to the glassy thin layer attached to the surface of the ceramic cup, which has the same physical and chemical characteristics as the glass state, impervious to water, smooth and glossy, not easy to stain, improve the mechanical strength, thermal stability and chemical stability of the product, and the glaze can also be decorated to enhance the artistic effect of the product.

● The content of ceramic glaze components leads to severe wear on the nozzle of the spray gun during the spraying process, and the production is often low because the needle nozzle is not wear-resistant, and the labor cost is increased. The spraying robot is used to test the glaze, and the service life of the nozzle of the spray gun is increased.

● In response to the above problems, find the right material, analyze the composition and physical properties of the ceramic glaze, and open a verification material specially suitable for ceramic glaze spraying, the service life of the needle nozzle has increased from the previous seven days to the present six months, and the production capacity and maintenance slope have declined.
