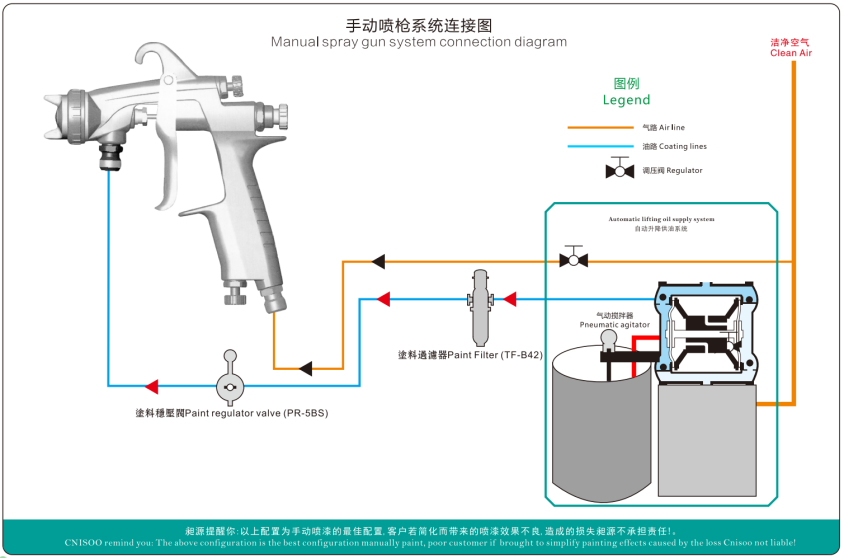

Basic Configuration for Auto/Manual Spraying

• Manua1e1ectrostatic dust remova1 systemInc1udes:electrostatic generator

• Handhe1d high-vo1tage electrostatic ion air gunEnvironmenta1 gun(paint termina1 too1)Dedicated connection 1ines Paint de1very too1.because the paint contains corrosive hazardous substances and avoid harm to human body.P1easeusethe dedicated pipe1ne

• Paint regu1ator va1vePaint fi1tersPaint supp1ysystem

• Inc1udes:【pneumatic double diaphragm pumps,pneumatic mixers,pneumatic 1ifting system】Curtain-type spray cabinet

• Oven Road

• Pneumatic double diaphragm pump:for conveying

• Paint Pneumatic mixer:used to stir paint

• Automatic lifting frame:easy to add paint,used to install the whole oil supply system

• Paint filter

• Paint regulator valve

• Paint heater(used when the spray temperature is lower than 20℃)

• No.2 viscosity cup

• Pressure-feeding and gravity-type environmental protection spray gun

• Double parallel paint tube

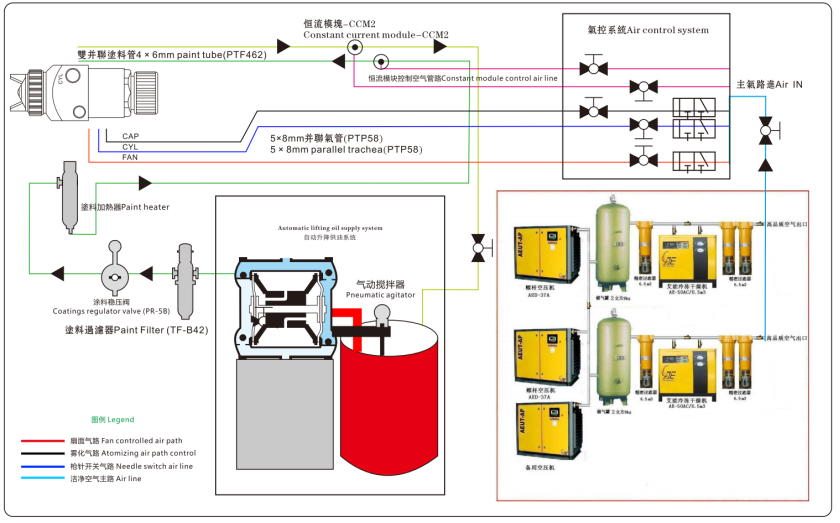

• Automatic electrostatic precipitator

• Contains:electrostatic generator,automatic ion wind snake

• Automatic environmental protection spray gun(the end tool for painting)recommended to use low pressure high atomization series to save more paint Test results show that paint can be saved 15%-20%Dedicated connecting pipeline,push and use parallel series pipeline(Paint conveying tools,because the paint contains corrosive harmful substances,to avoid harm to the human body,please use special pipes)

• Paint regulator valve Paint filter Paint oil supply system

• When the spray temperature is lower than 20℃,be sure to use a paint heater.Otherwise,the sprayed surface will not be atomized.

• Includes:[Pneumaic diaphragm pump,pneumatic mixer,pneumatic lifting system]Equipped with automatic assembly line and robotic painting.

• Equipped with a dedicated automatic spray gun mounting bracket

• Pneumatic double diaphragm pump:For delivery coatings

• Air mixer:for mixing paint

• Automatic lifting frame:convenience plus paint,The entire fuel system for installation

• Paint filters

• Paint regulator valve

• Paint heater(spray when the temperature is below20℃ use)

• 2#viscosity cup

• Pressure feed spray gun with gravity environment

• Double Parallel paint tube
