PRODUCT FEATURES

The spray gun produced by electroplating process breaks the oxidation phenomenon of the traditional spray gun in humid environment, and can resist corrosion and friction. It can be equipped with RP series paint-saving air cap, and it is also equipped with a stainless steel paint cup. It is an easy-to-use spray gun in water-based paint.

The spray gun feels light and handy, and is also a high-performance manual spray gun that is comfortable to use and has excellent coating atomization performance. The spray gun supports a special nozzle made of composite material. Can spray any coating needed. Packed in moisture-proof packaging, can be equipped with universal removal wrench (need to buy separately).

PRODUCT PARAMETER

Model: HU-180/W—101—(Nozzle caliber code)
All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.
Nozzle Diameter Φ-mm@code		Output -Ml/Min(CC)	Atomizing pressure-Bar（Kg/Cm²）	Air usage -l/Min	Spray width-mm@H=150mm	Spraying distance-H=mm	Atomizing cap-Model
60	0.6	80	0.75~1.5 0.075~0.15Mpa	65	120~240	60~100	D650A / G601B
80	0.8	100		78	150~260	80~150	D650A / G601B
100	1.0	130		110	220~300	100~200	D651B / G601B
120/130	1.2/1.3	150		130	230~420	100~240	D651B / G601B
150/160	1.5/1.6	200		160	240~450	100~300	G601B
180	1.8	400	1.5~2.8 0.15~0.28Mpa	175	350~450	200~400	D650C
200	2.0	430		185	380~450	200~400	D600D
240	2.4	660		220	260~350	300~450	D650C
280	2.8	980		350	240~350	300~500	G650D
300	3.0	1250		550	240~350	300~500	G650D
Product models the models listed here. The front part HU-180 is our product model code, and the rear part is the corresponding circulation model. Please pay attention to the identification when purchasing. Order model example: HU-180-100, which is the WA-101-E2P in circulation.

这里可以自定义设置

① The nozzle diameter also refers to the effective diameter through which the coating particles can pass. The data in the table in the front column is the code. The parameter code needs to be filled in when ordering.

② The parameter reading in the atomization pressure needs to be read in conjunction with a professional spraying air pressure gauge. The parameters in the lower column are Mpa megapascal units, 1 MP ≈0.98Bar.

③ The front model is the model code of the universal circulation spray gun, and the model in the back column is our company's order model code.

④ The parameter reading in the atomization pressure needs to be read in conjunction with a professional spraying air pressure gauge. The parameters in the lower column are Mpa megapascal units, 1 MP≈0.98Bar.

⑤ The minimum particle diameter is measured by laser diffraction. Depending on the viscosity, there will be substantial differences. Do not use it as a basis for production. It is only used to distinguish the effect that the spray gun can achieve under specific conditions.

Air cap code		Air usage -l/Min	Spray width-mm@H=150mm	Atomizing pressure-Bar（Kg/Cm²）	particle size-μm	Application area
E1	D650A	75	130	0.75~1.5	0.5~5	3C products Wood, furniture, car interior, hardware, electrical appliances
E2P	D651B	270	220	0.75~2.5	1~10
K1	D650B	145	160	1.0~1.5
K2	G601B	330	380
H2	G600B	225	225
—	D651A	80	150
—	G651A	120	320
—	D651B	165	240
H4	G601B	280	390	1.5~2.4
N1	D650C	170	190	1.5~3.5	3~30	Wood, furniture, car interior, hardware, electrical appliances
N2	D600C	220	220	1.2~2.9
R1	D600D	260	280
R2	G650D	360	320
W1	D650D	360	310
R	R0FG	95	@7.5°（25~45）	0.5~2.4	5~10	Small area spraying
R	R1FG	120	@7.5°（25~45）	1.2~2.0	0.5~10	Small area spraying

PRODUCT DETAILS

The spray gun produced by electroplating process breaks the oxidation phenomenon of the traditional spray gun in humid environment, and can resist corrosion and friction.

The spray gun nozzle is made of 304 stainless steel, which is resistant to corrosion and abrasion. At the same time, it is equipped with a compound needle with a patent number of CN107081232A to adapt to special performance coatings. Such as: ceramic coatings with high abrasion performance, PTFE coatings, water-based coatings with high solid content, special coatings containing sand and so on.

The air cap is made of environmentally friendly copper alloy after five-axis CNC machining. Each atomizing cap has undergone professional testing and test spraying to prevent poor atomization during spraying, thereby reducing the defective rate caused by spray gun spraying in production.

The specially treated surface can withstand friction and corrosion,and the service life is significantly extended.

The knob of the adjustment method has been changed for more precise adjustment.

The upper and lower paint entry channels are integrated,and the paint entry method can be changed at will.

SCHEMATIC DIAGRAM OF THE WIDTH OF HTE WIDTH OF THE FOGGING PATTERN

Spray frame pening angle:

The width adjustment valve of the ordinary brand spray gun rotates once, opening about 45%,About 80% for 1.5 laps and 100% for 2 laps. Our company has optimized it based on insufficient adjustment, and the adjustment range has changed: about 25% for 1 lap, about 50% for 1.5 laps, about 75% for 2 laps, and about 100% for 3 laps. The adjustment has a linear change, which makes it easier to control the spray pattern change.

■ Corrected the internal seal slope, making the adjustment more layered and improving the use feeling.

■ Equilibrium air vias are used to maximize the even flow of air, thereby reducing the fluctuation of air flow and affecting the adjustment of spray width!

■ The width adjustment valve changes the processing technology and trims the matching angle to make the width adjustment feel stronger.

WE'LL BE GLAD TO ANSWER YOUR QUESTIONS, PROVIDE SUPPORT OR OFFER QUOTES ON OUR PRODUCTS.

CONTACT NOW

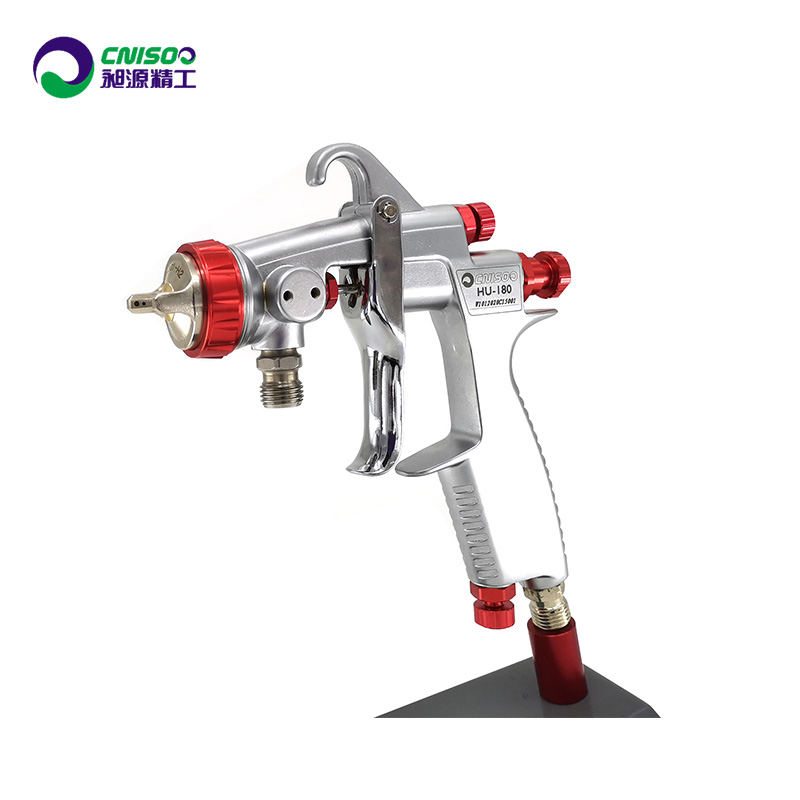

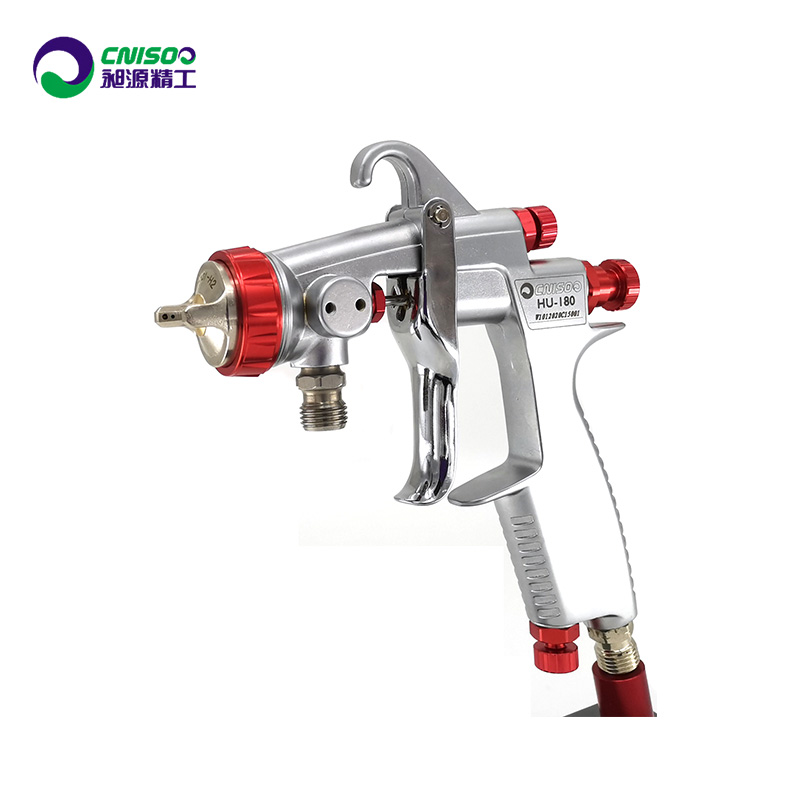

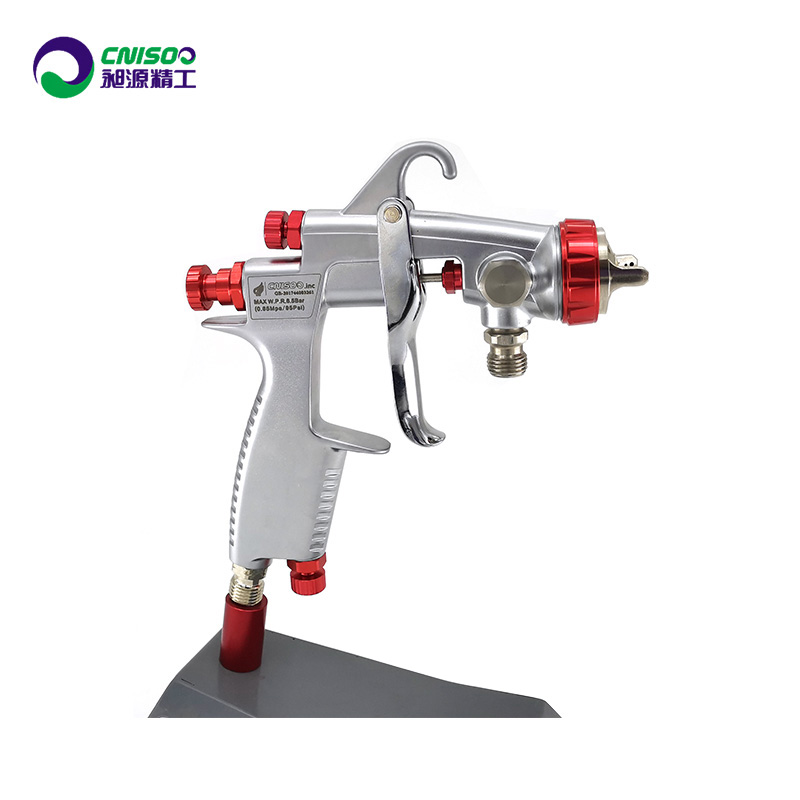

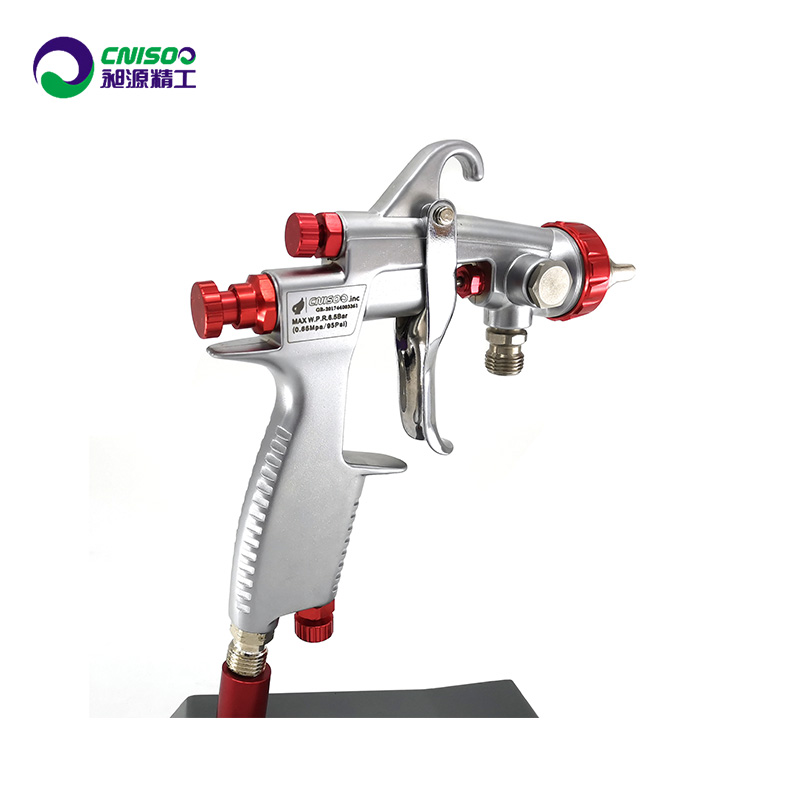

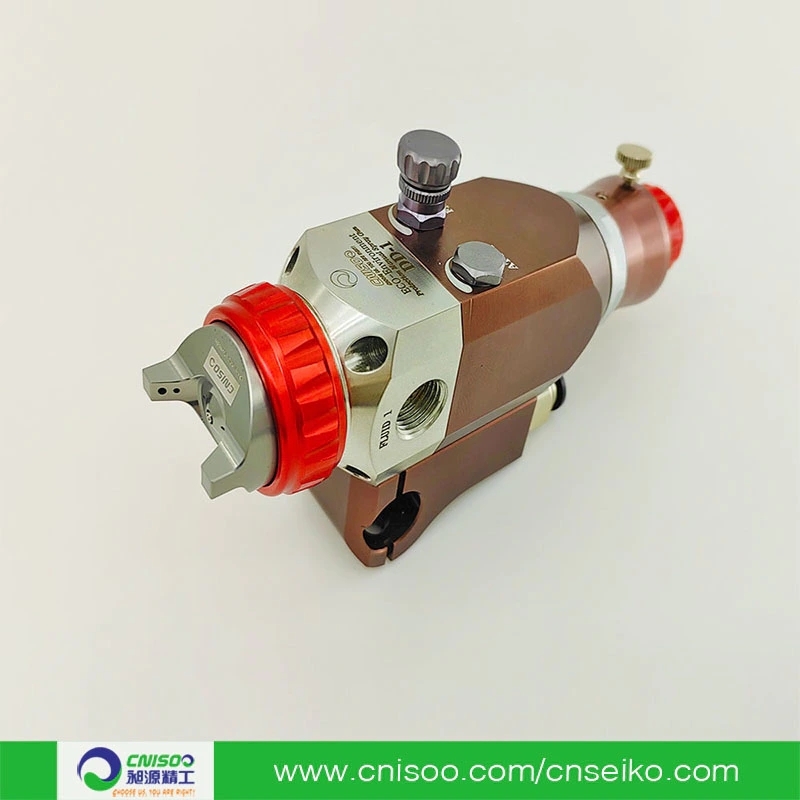

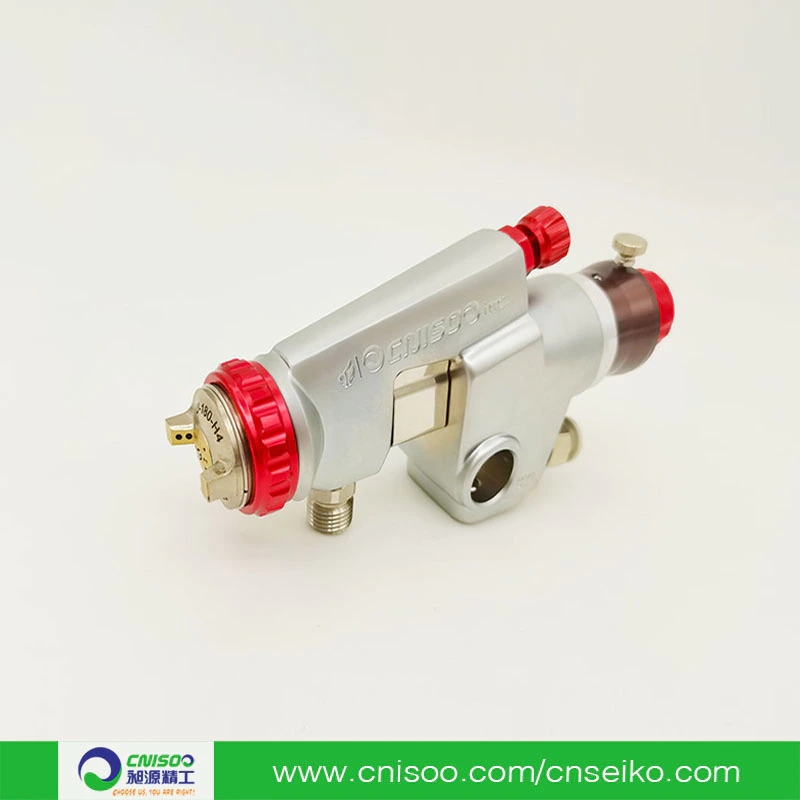

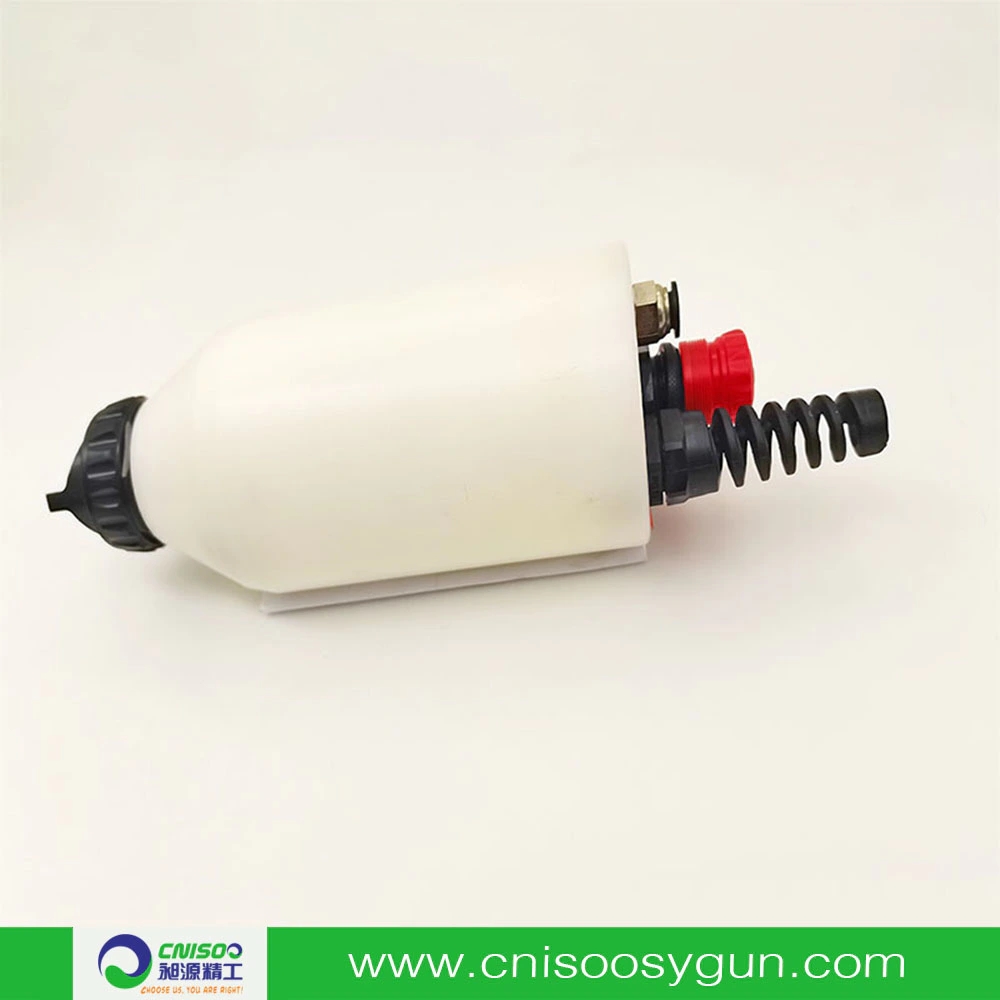

PRODUCT DISPLAY

PRODUCT APPLICATIONS

Spray guns are popular in the field of artificial spraying because of their lightness and excellent atomization. Is widely used in electronics, electrical appliances, furniture, wood products, hardware, aerospace, automotive, daily necessities and other household products, smart product shells, model toys and other surface treatment processes.
