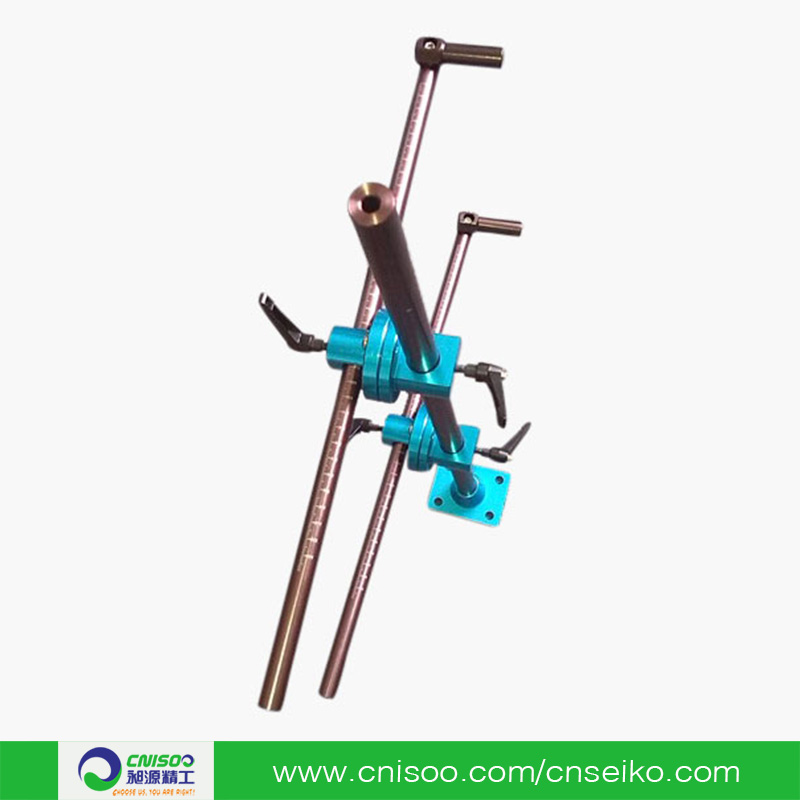

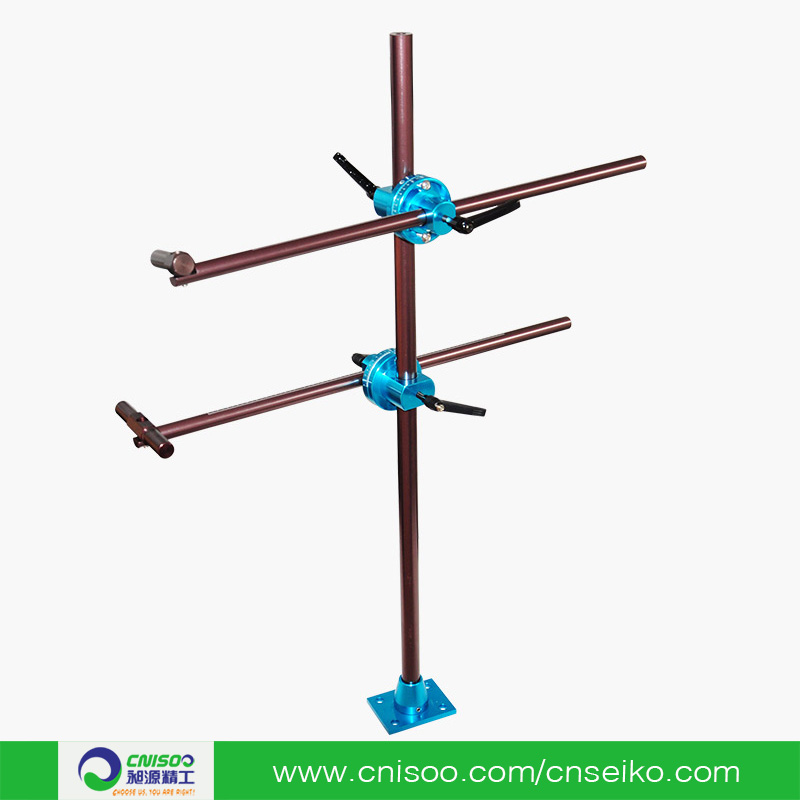

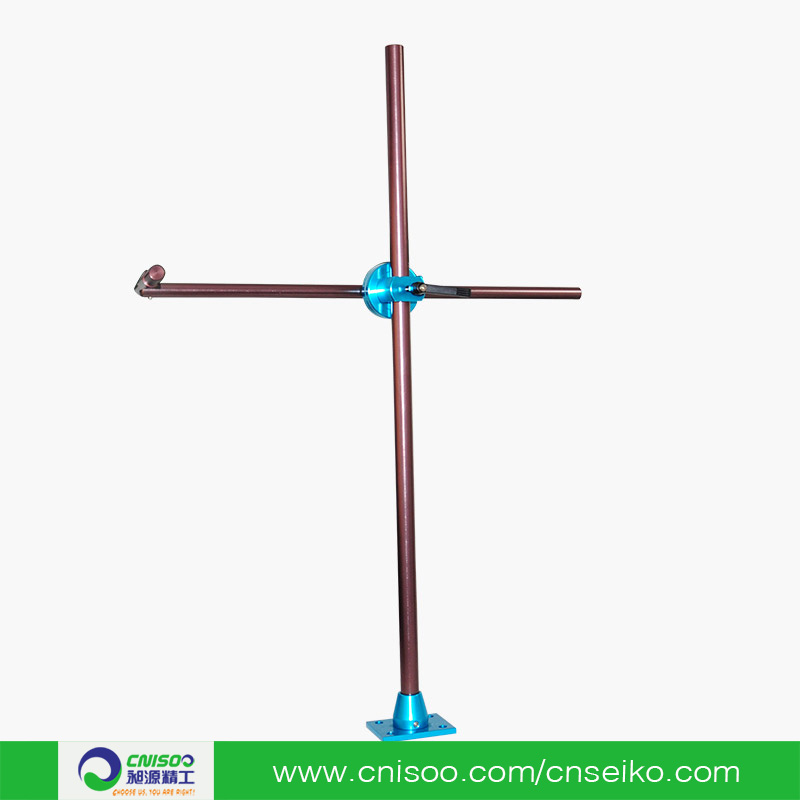

Product Description
Connecting rod :the position used to fix the spray gun
Crossbar:used to adjust the distance between the gun and the object before and after stretching
Universal adjustable joint:used to adjust the angle of elevation and eleation of the gun in the dead angle position
Mounting base:It is used to fit the 40mm×80mm aluminum profile mounting gun bracket
Free move connections,installation link∮15,suitable to all brands and models of guns.
Universal adjustable adjustment knob,any direction can be adjusted Adjustable screws to fix,convenient and quick
Compact base design,M8 mouting screws
| Model: GMR-*/0/D | |||||
| Model | Pole specification | Crossbar specifications | Base mounting size | Joint configuration | Surface treatment |
| GMR-U | 810mm,/Scale reading600mm | 500mm,/Scale reading600mm | Universal ad justable angle | Base size:Thickness6mm,installationwidth 40mm using M8monting screws.with 40x80mounting screws. with40x80GBaluminum | Barrel brownanodized to prevent minor bumps scratches,cor rosion resistant |
| GMR-F | 415mm,/Scale reading330mm | Fixed angle | |||
| 0/D | 0nly one:“0” Two rails“D’ | ||||
| Link | 15mm | ||||
