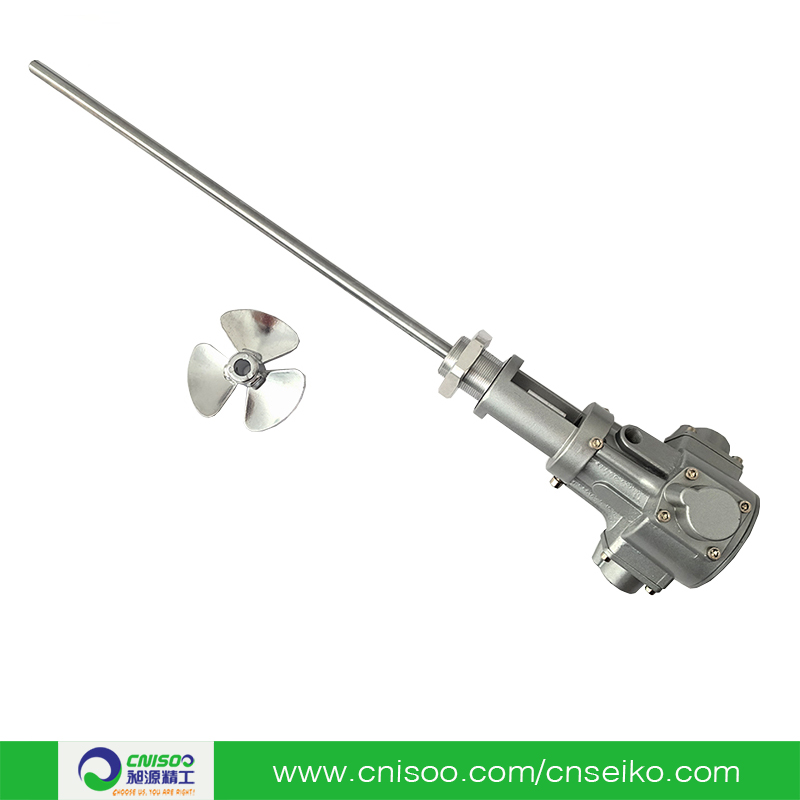

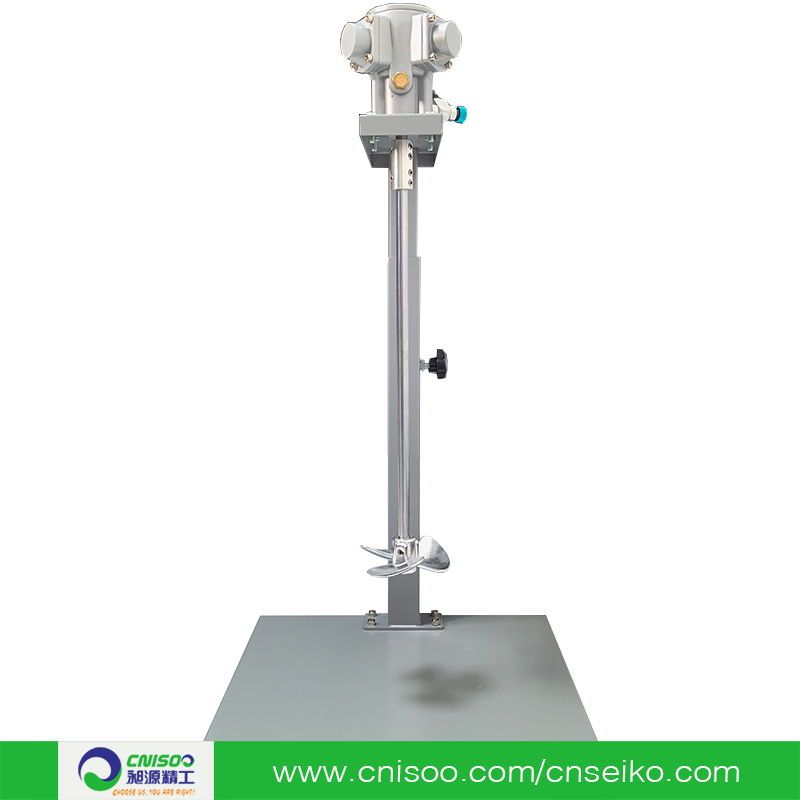

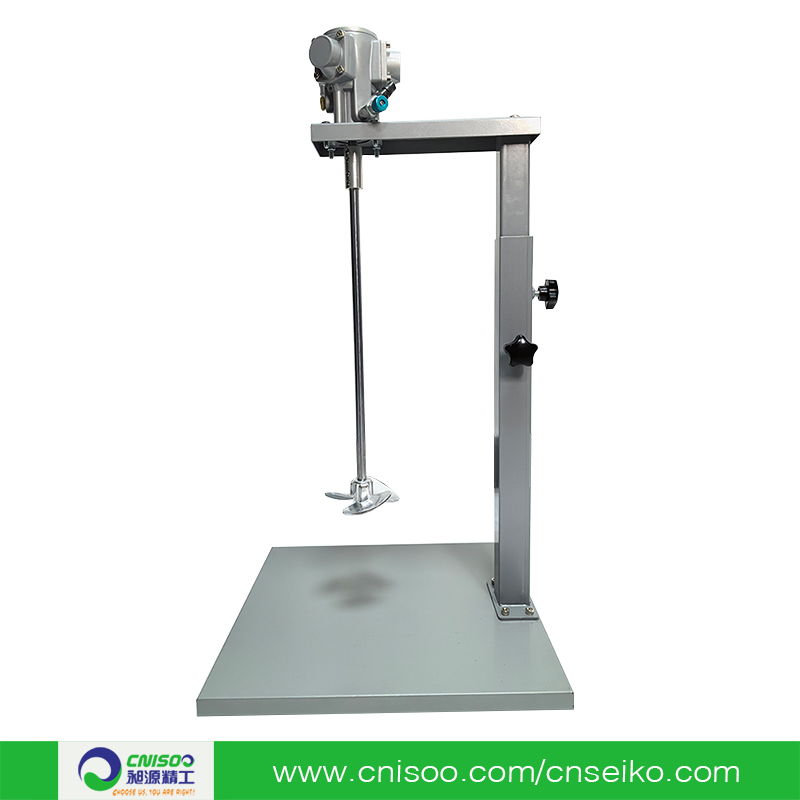

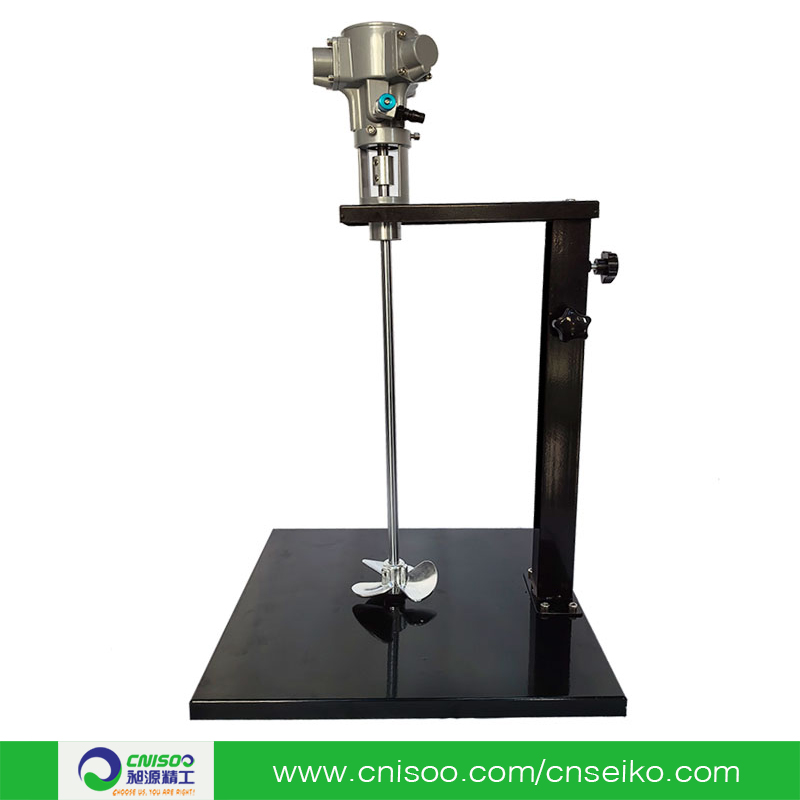

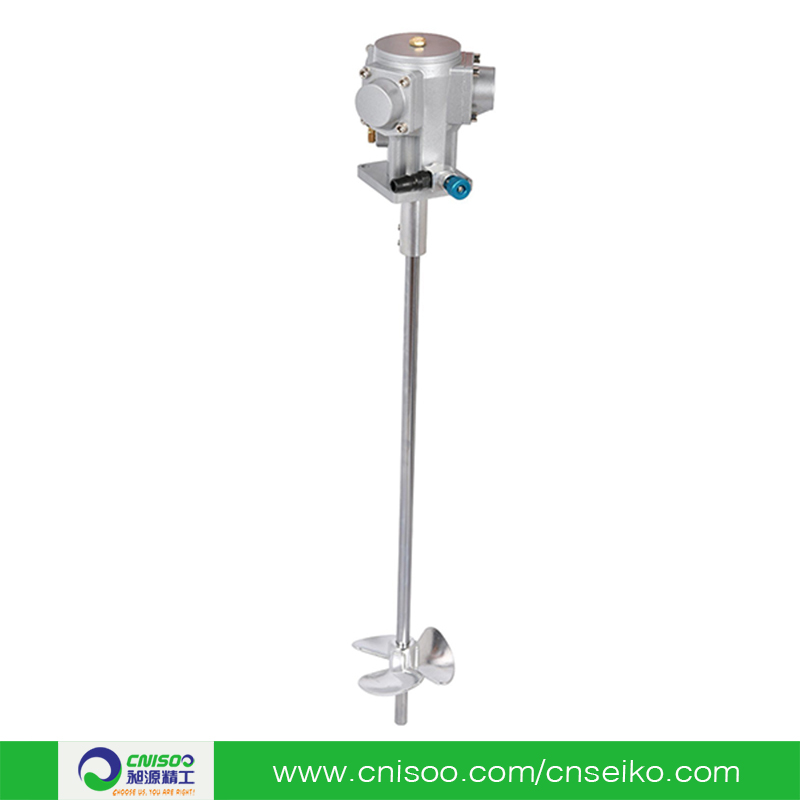

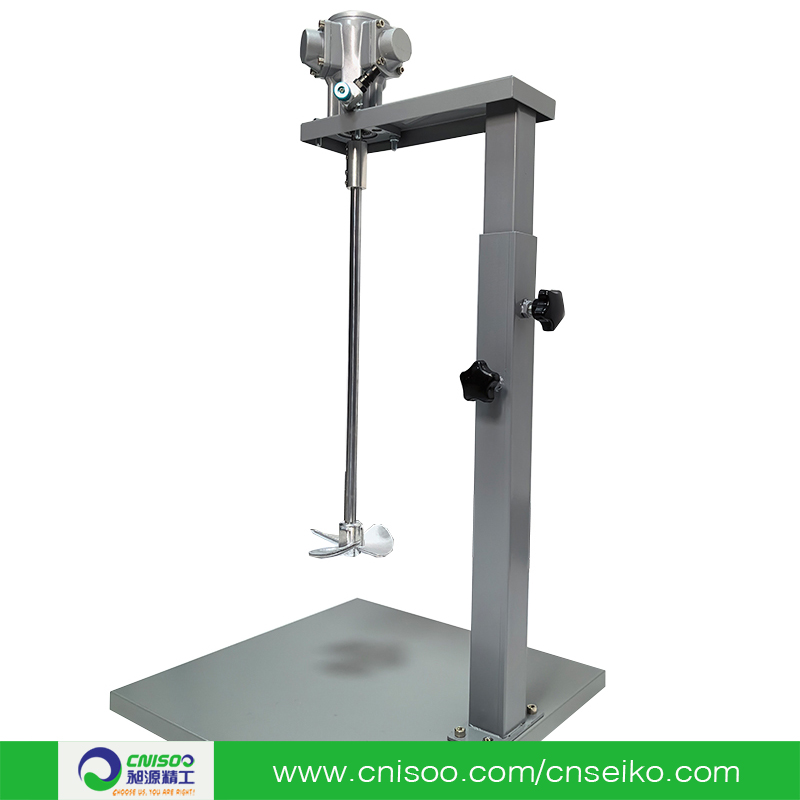

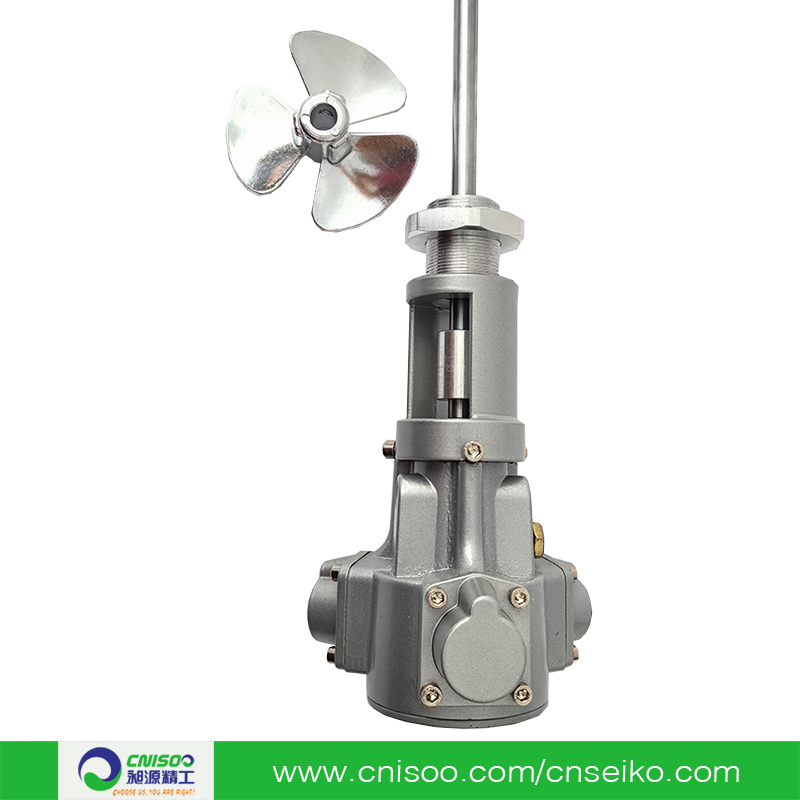

5 Gallon Mixer/5 Gallon Lift Mixer

这里可以自定义设置

Product Description

Compressed air-driven pneumatic motor drives the mixer to rotate at a certain speed, according to the different mixing speeds, from the impeller discharged at different speeds of the fluid, the movement of the fluid at the same time to attract carriers around the liquid, is surrounded by the static flow or low-speed flow involved in it, so as to synthesize a complex movement of the flow. The synthesis of the movement of both horizontal circulation flow, but also along the wall and the mixing shaft of the up and down circulation flow, this circulation flow, can involve a large range of mixers, play a role in volume circulation. The liquid discharged from the impeller to transfer the energy from the impeller to the tank medium, while the liquid in the tank will be circulated to the impeller with the role of agitation in turn near the impeller. Due to the instantaneous speed fluctuations will produce turbulence, vortex and other irregular movements, gradually disintegrate and the surrounding fluid mixing, the result of the fluid itself, as well as the heat contained in the mass and energy are also moved to the surrounding, which promotes the overall liquid flow due to the local mixing, heterogeneous interfaces such as the renewal of the overall liquid flow caused by the homogenization of the mass transfer and heat transfer reaction.

Product Features

1.Pneumatic mixer can be infinitely adjusted speed. As long as you control the opening of the inlet valve or exhaust valve, that is, control the flow of compressed air, you can adjust the transmission power and speed of the motor. Then you can achieve the purpose of adjusting the speed and power.

2. Pneumatic mixer can be forward and reverse. As long as the simple manipulation of the valve to change the direction of the air motor inlet and exhaust, that is, to achieve the positive and negative rotation of the output shaft of the air motor, and can be instantaneous change of direction.

3. The working environment of the pneumatic mixer is not affected by vibration, high temperature, electromagnetism, radiation, etc. It is suitable for the harsh working environment, and can work normally under the unfavorable conditions of flammable, explosive, high temperature, vibration, humidity, dust, etc.

4. pneumatic mixer supporting the air motor has overload protection and failure. When overloaded, the pneumatic motor just reduces the speed or stops, when the overload is lifted, it can run normally again immediately and does not cause damage to the machine parts and other faults. It can run continuously for a long time with full load, and the temperature rise of the air motor is small.

5. The pneumatic mixer has high starting torque and can be started directly with load. Starting and stopping are rapid, can be started with load, will not affect the use of electric mixer like sometimes burner.

6. Pneumatic mixer is easy to maneuver, maintenance and repair easier, air motor has a simple structure, small size, light weight, horsepower, the use of air as a medium, easy to maneuver, easy maintenance.

Product Parameters

Mode	5GA	5GA-AT
Power type	Compressed air
Working Pressure	0.4~0.7MPa
Motor Power	1.2HP	1. 2HP
Speed range	0~360RPM(Sped adjustable)
Max speed	1280RPM
Air Consumption	650L/min	650L/min
Strring capacity	18.5L	20L
Strring Liquid viscosity	Less than 20000 centipoise
Material type	Liquid Coating
Working method	Continuous operation
Practical Material	Paints、coatings、inks,resins、glues、food etc.
