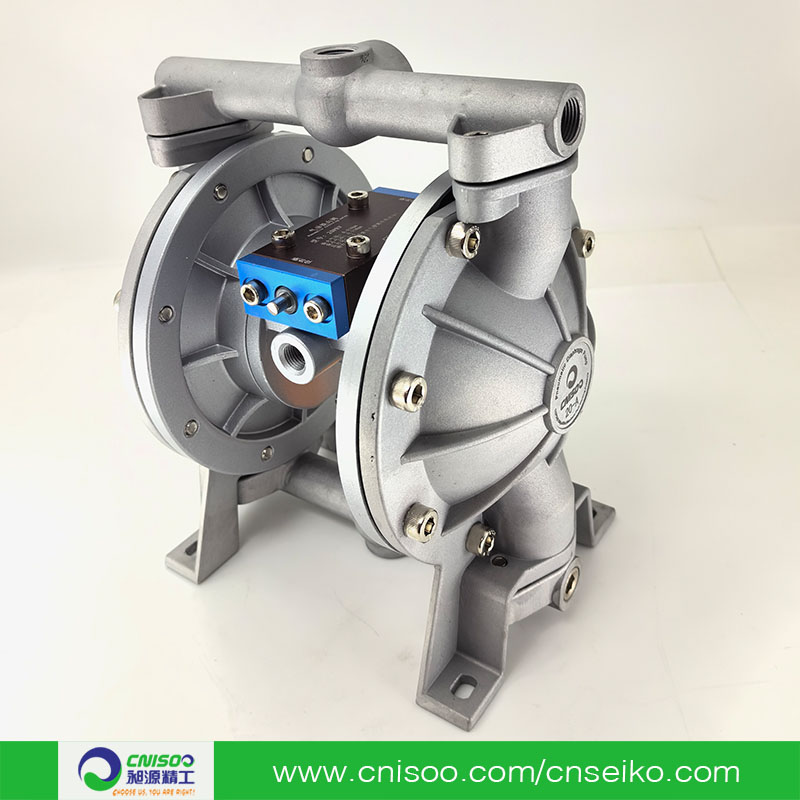

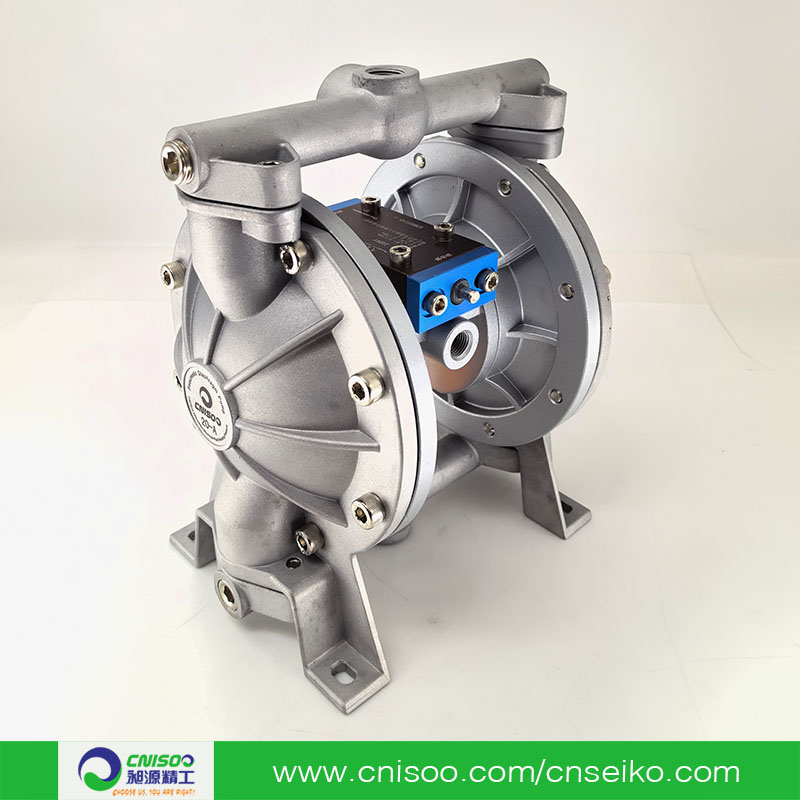

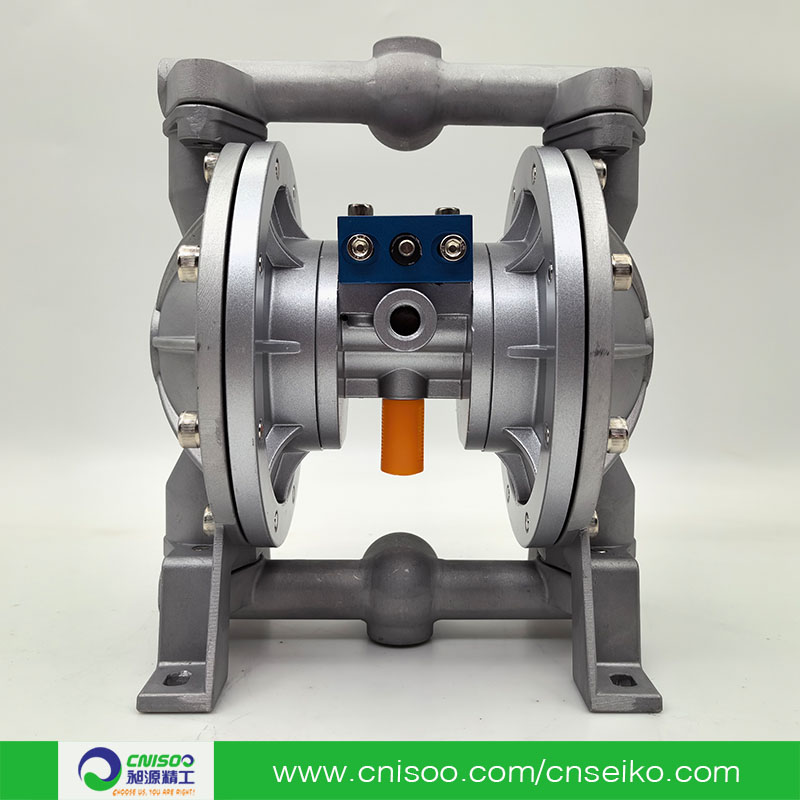

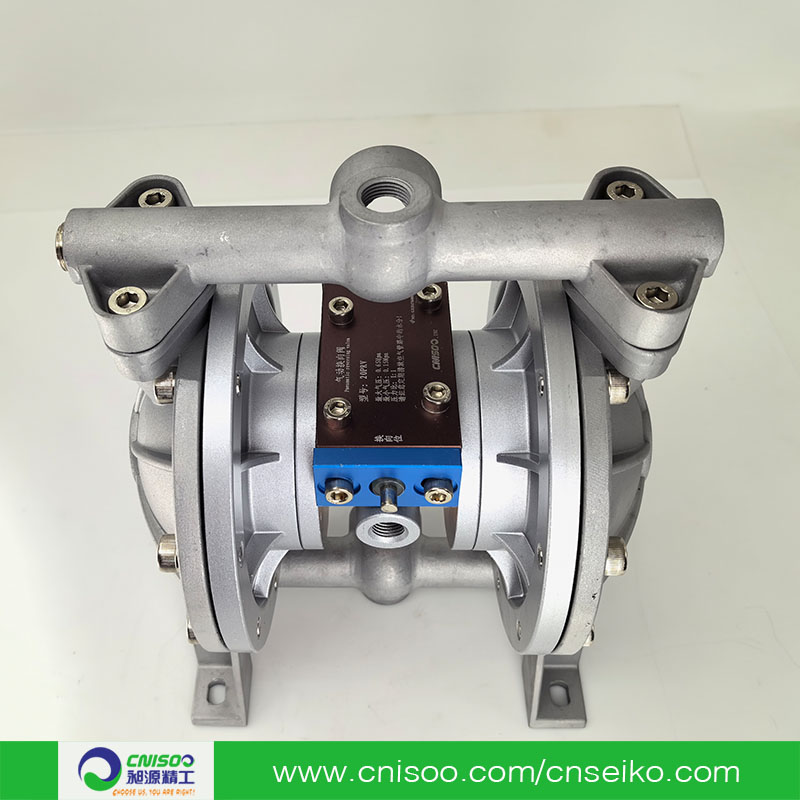

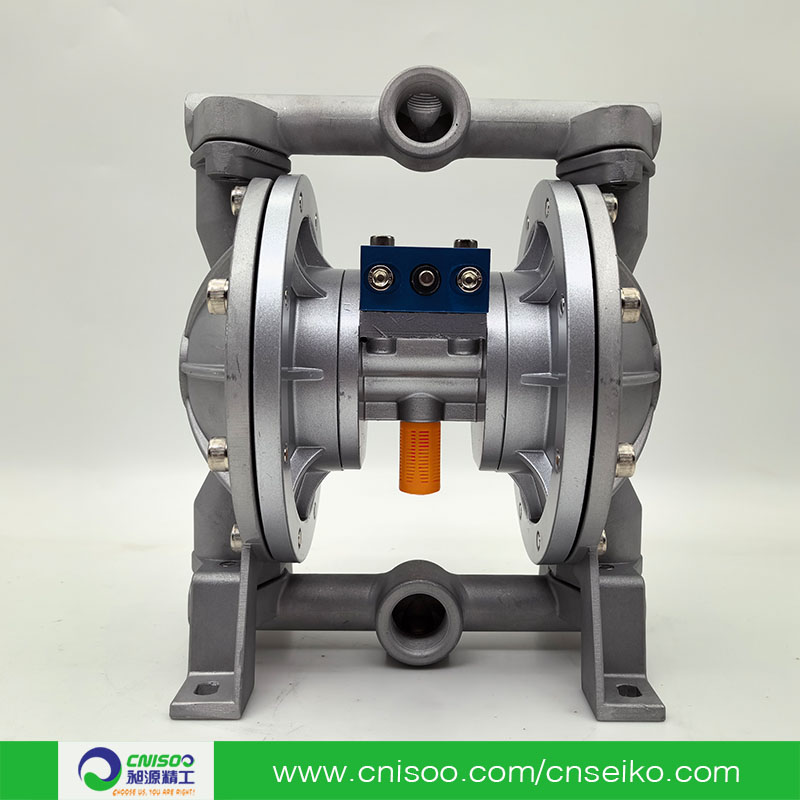

Pneumatic Diaphragm Pump |

这里可以自定义设置

Product features introduction

● The air operation valve of the double spool mechanism in the stable supply model has been improved to use the commutation more smoothly and reduce the commutation generating artery.

● The liquid part of the pump body is made of aluminum and stainless steel.

● Two diaphragm pump connecting rod at both ends of the rod, pressure pump body spit out liquid, simple structure.

● Figure 1A side of the air chamber into the compressed air, the diaphragm pump left pressure liquid extrusion.

●The rod connects to the B-side diaphragm pump and moves to the left to suction fluid

When the rod moves to the far left, the air valve switches.

● Figure 2B side of the air room into the compressed air, the diaphragm pump to the right of the liquid extrusion.

● A side suction fluid

● The action is repeated, continuous inhalation/exhalation, stable exhalation without pulse.

● Die casting aluminum alloy production, CNC precision molding. Sandblasting, painting, anodizing treatment

Product parameter form

All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction. Based on the approximate standard of total discharge (including circulation)

Form 1

Type of pump	16A Series
Total Amount Requested	～25L/min
Output Amount Each Cycle	85mL/min
300Cycle/min Output of Each 300 Cycle/min	～25L/min

Form 2

Model	16A Series
Pressure Rate	1:1
Air Pressure Pange	0.15～0.7MPa
Max.Paint pressure	0.7MPa
Output Amount of Each Cycle	150mL/Cycle
Maximum Cycle	200Cycle/min
Max. Output	～25L/min
1 Output of Each 300 Cycle/min※1	～25L/min
Standard Viscosity※	100Sec/NK-2 300CPS

The data is the approximate standard of pump selection and does not represent the full performance of the paint.

Form 3

Type of pump	Pump-16A
Main body material	Aluminum alloy
Air lnlet size	G1/4
Liquid inlet size	G3/8
Liquid qutlet size	G3/8
Air pressure	0.15～0.7Mpa
Best air pressure	0.3～0.4Mpa
Pressure ratio	1:1
Max.output	25L/min
Max.size for output particle	1.5mm
Temperature	5～40℃
Net Weight of Pump	5kg
Dimensions	535×400×250mm

Other specifications can be customized

这里可以自定义设置

Product application introduction

The pneumatic double diaphragm pump has simple structure and excellent durability, and can be used for various purposes from small amount painting to installation of multiple spray guns and coating transportation.

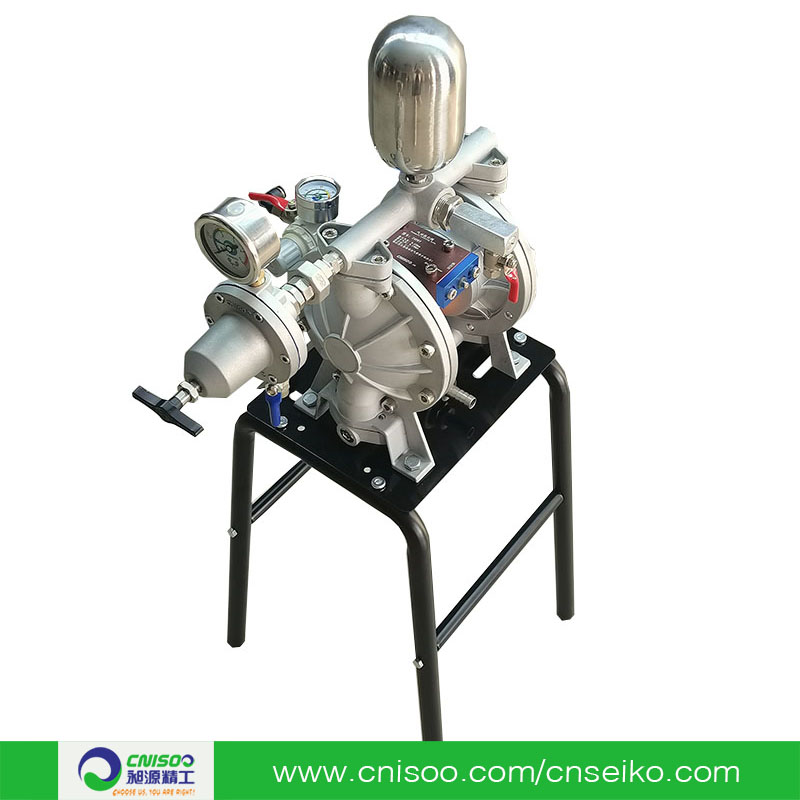

The paint pressure regulator ensures stable supply and achieves high quality spraying effect.

PRODUCT DETAILS

Pneumatic double acting piston pump with bellows seal structure, high pressure rate and large discharge performance, for high viscosity paint or multiple guns at the same time painting.

The pump body is durable, and the liquid part of the pump body is made of aluminum material.

Paint interior surface mirror processing, shorten the change of paint color and cleaning time, the amount of cleaning liquid and waste liquid discharge.

Gun size and connector size
