Environmental Protection Automatic Spray Gun |

这里可以自定义设置

Product features introduction

External control automatic spray gun, is a low pressure high atomization environmental protection automatic spray gun, robot loading automatic spray gun, combined with automatic spray machine, reciprocating spray and spray robot, suitable for mass production of spray gun. High-viscosity binders can also achieve high granularity. Wide spray width and large spray amount, maintain stable spraying, reduce the droplet drop phenomenon at the front of the nozzle, and achieve stable spray width. The center air and Angle air are independently controlled to change the spray amplitude remotely. When using coatings that are easy to precipitate such as gold attribute coatings, the paint can be recycled and equipped with our specially developed point spray system can effectively improve the problem of gun clogging.

Product parameter form

All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.

Form 1

Model	RC-21
Nozzle Diameter (mm)	0.7/0.9/1.1/1.4/2.2	Max paint pressure	0.15Mpa
Air Consumption (l/min）	300-530	Atomizing air pressure	0.1-0.4Mpa
Output (ml/min)	0～550	Air inlet pressure	MA×0.6Mpa
Pattern Width (mm)	280@H=300mm	Pressure of switch spray gun	0.35-0.5Mpa
Air Cap Model	Five-axis machining forming a spray cap	Air consumption	450l/min
Supply System	16A/20A Type of pressure stable and paint filter	Paint output	10-380ml/min
Mounting hole diameter (mm)	M8*6	Spray width	200mm-280mm

◎ It will vary with the paint volume, spray width, paint viscosity and pressure

这里可以自定义设置

Product application introduction

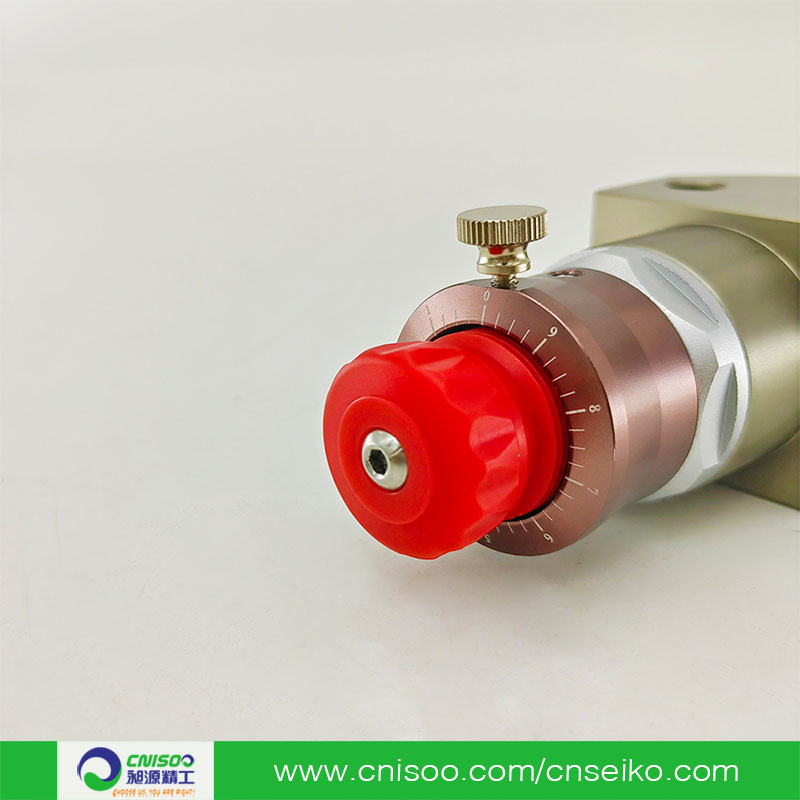

● Intake adjustment and spray ampoltude adiustment, are set in the machine equioment, t can remote contro operation, and independent control.reduce the troubled of operation, designed to return materia hole is easy to clean the nozzle.

● The intake pressure can be adjusted according to your needs (2.5-3.0bar), to reduce the paint rebound, saving paint, slender spraying, uniformatomization, spray large, fine particles, the effect is particularly good, spraying efficiency high speed

● It’s suitable for use in the large of coating, can be installed in the mechanical arm or automatic painting equipment.

● This automatic spray gun is widely used in industry because of easy operation, atomization uniform, spray large, fine particles, light weight it iswidely used by industry, such as computer shel, mobile phone shel, cosmetc shel, furniture, hand tools, medicine, textile, glass. Plastic, rubberprinting, die-casting, building materials, hardware and other industries can be used.

With a variety of nozzle caliber for choice, and a variety of spray cover, so you use more convenient.

● Nozzle and thimble 304 stainless steel suitable for spraving water-based paint

PRODUCT DETAILS

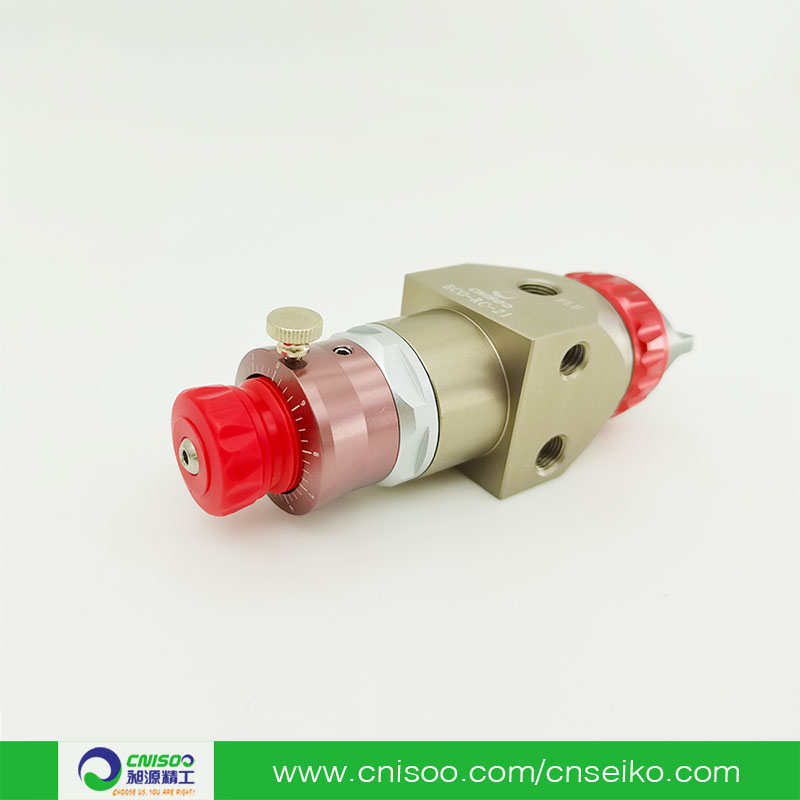

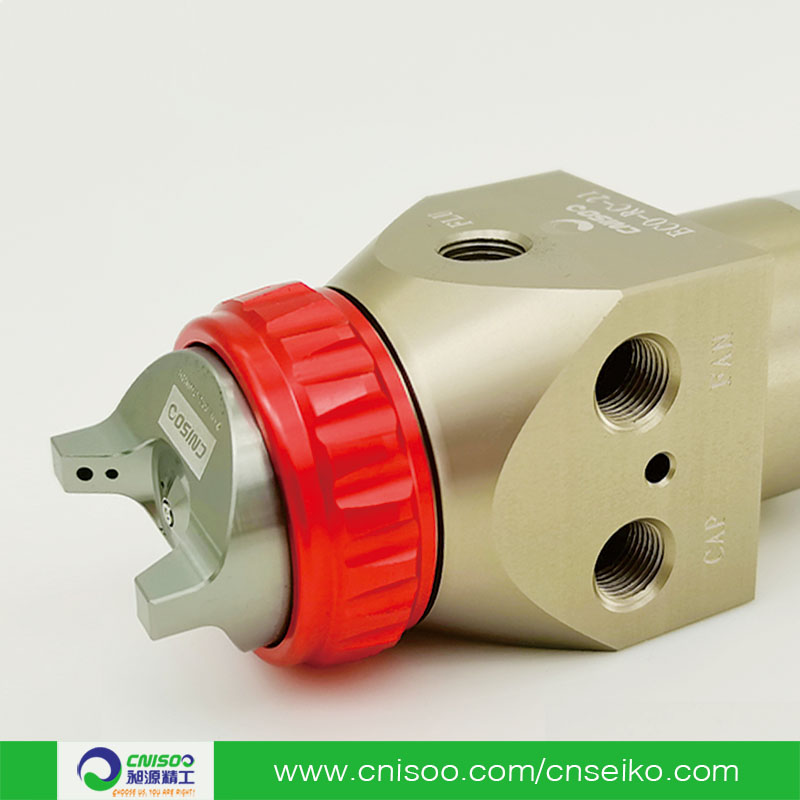

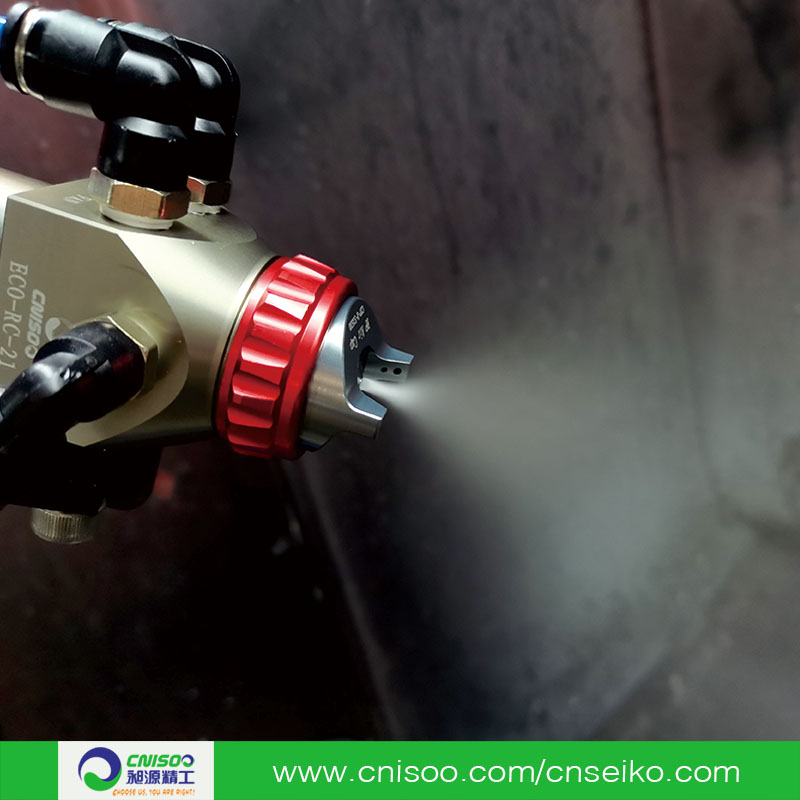

RC-21 is a type low-pressure and high atomization automatic spray gun, lt is suitable formass production and usually used with automatic spraying machine, reciprocating sprayingmachine and spraying robot. High viscosity binder can also achieve high micronization, largespray width and discharge volumereducing coating dripping of front nozzle, to achieve stablespray. The use of central air and angle air independent control, can remotely change the spraywidth, When spray easy-precipitate paint, for example, metal coatings, our spray gun caneffectively improve plug problem, equipping with recyled paint and our specially developed pointspray system.
